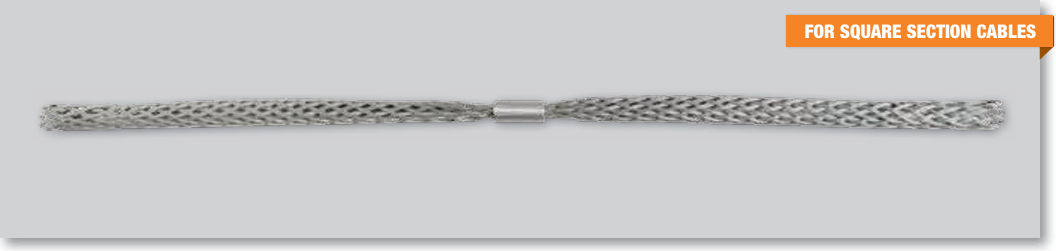

Pulling grip fit for square section elements, for temporary junction

Catalog > Cable pulling grips & Lifting products > Cable pulling grips > Special grips > Pulling grip fit for square section elements, for temporary junction

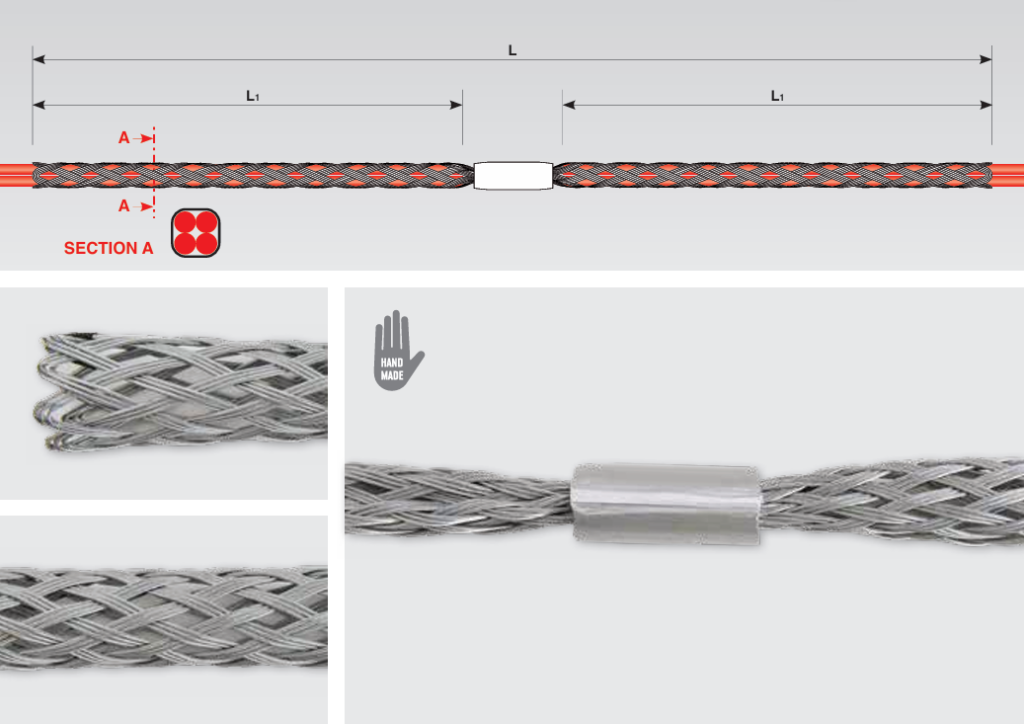

Model	Order No.	Cross section (mm)	Length L (mm)	Length L1 (mm)	Pulling force (daN)	Number of braids	Wire diameter (mm)	Number of strands	Weight (kg)
XQG415300	XQG415300	30x30	1500	700+700	3.000	8	1,25	19	1,44
XQG420400	XQG420400	40x40	1700	800+800	4.500	8	1,25	19	1,90
XQG425500	XQG425500	50x50	1900	900+900	6.000	8	1,50	19	2,10
XQG430600	XQG430600	60x60	2100	1000+1000	6.000	8	1,50	19	2,10
XQG435700	XQG435700	70x70	2100	1000+1000	6.000	8	1,50	19	2,10
XQG440800	XQG440800	80x80	2500	1200+1200	10.000	8	1,50	19	4,60
XQG445900	XQG445900	90x90	2500	1200+1200	10.000	8	1,50	19	4,60
XQG450100	XQG450100	100x100	2750	1300+1300	13.000	8	1,50	19	5,40
