Box top trailer

Dollco service overview:

  • All trailers with box bodies are fitted with stainless steel locks as standard.
  • All trailers with white or gray Plywood body.
  • Polyester roof with spoiler.
  • As the fixing material is glued and the hinges are fitted with an anti-theft device, it is difficult to remove the closed doors.
  • Single or double-wing rear doors, alternatively rear door as drive-on ramp.
  • Single or tandem axle.
  • All trailers with support wheel.
  • Lashing eyes recessed into the floor.
  • Espagnolette lock.
  • V-drawbar.

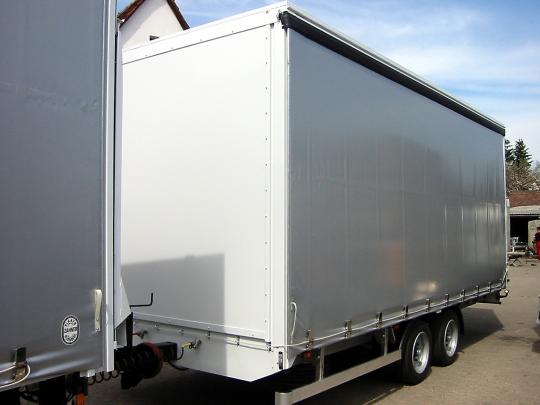

losed tarpaulin trailer with twin axle for safe transport – perfect for furniture, machinery and large goods
Tandem-axle enclosed box/cargo trailer—durable closed body with low loading height, drawbar and jockey wheel; ideal for moving, event equipment and palletized goods.
Box trailer with ergonomic door handle for comfortable opening and closing.
Handles standard on all trailers with wooden box body.
Box trailer with robust floor lashing rings for secure cargo fastening.
Integrated tethering eyes. ( optional)
Box trailer interior with integrated tie-down rails for flexible cargo securing
Anchor rails with rods for load securing (optional)
Box trailer with reinforced frame for maximum stability and durability.
Raised frames for greater stability
Box trailer with sturdy ramp door – ideal for easy loading and unloading.
Drive-on flap with gas strut (optional)

Trailer with wooden box body:

Type211321132513251325133015
Perm. total weight750 Kg1350 Kg1350 Kg1500 Kg2000 Kg1350 Kg
Length (A)210 cm210 cm251,5 cm251,5 cm251,5 cm301 cm
Width (B)130 cm130 cm130 cm130 cm130 cm150 cm
Height (C)152 cm152 cm152/202 cm152 cm152/202 cm152/202 cm
Type30153015301540183218
Perm. total weight1500 Kg2.000 Kg2700 Kg2700/3000 Kg2000/2700 Kg
Length (A)301,5 cm301,5 cm301,5 cm400 cm320 cm
Width (B)150 cm150 cm150 cm185 cm176 cm
Height (C)152/202 cm202 cm202 cm200 cm197 cm

Trailer with aluminum box body:

TypePS130PS230PM300PM340PL20PL30PL32PL42
Perm. total weight1.350 Kg2.000 Kg2.000 Kg2.700 Kg2000 Kg2.700 Kg2.700 Kg2.500 Kg
Length (A)270 cm270 cm330 cm330 cm 406 cm 406 cm 406 cm 406 cm
Width (B)105 cm150 cm170 cm170 cm184 cm184 cm204 cm204 cm
Height (C)160 cm160 cm180 cm180 cm180/200 cm180/200 cm180/200 cm180/200 cm
Dimensions in cm and weight in kg

trailer technical drawing dimensions side and front view
