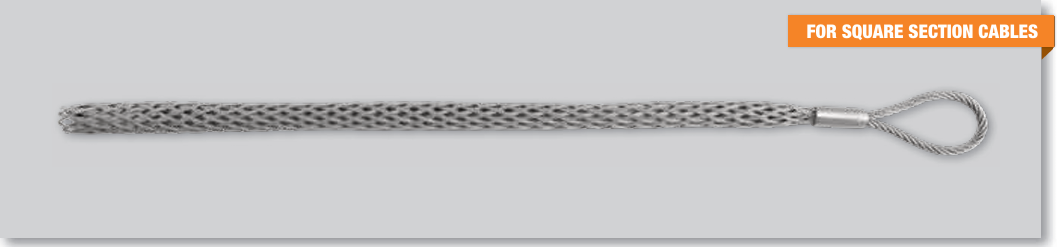

Pulling grip fit for square section elements, with single eye without thimble

Catalog > Cable pulling grips & Lifting products > Cable pulling grips > Special grips > Pulling grip fit for square section elements, with single eye without thimble

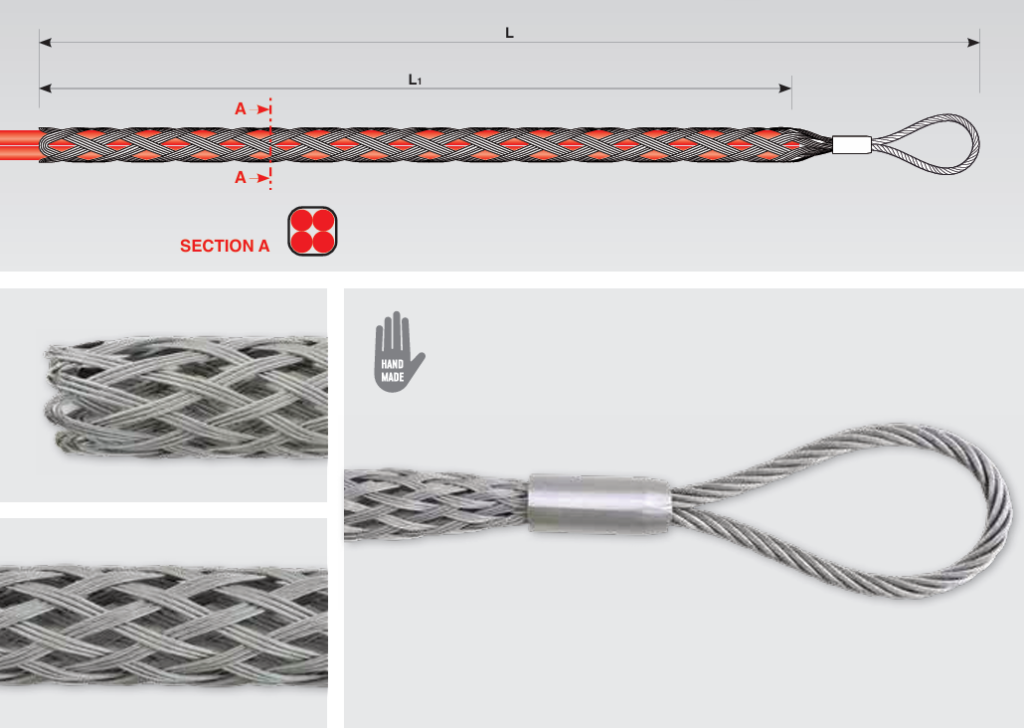

Model	Order No.	Cross section (mm)	Length L (mm)	Length L1 (mm)	Pulling force (daN)	Number of braids	Wire diameter (mm)	Number of strands	Connection (mm)	Weight (kg)
XQ415300	XQ415300	30x30	900	700	3.000	8	1,25	19	6x150	0,90
XQ420400	XQ420400	40x40	1000	800	4.500	8	1,25	19	8x150	1,20
XQ425500	XQ425500	50x50	1150	900	6.000	8	1,50	19	8x150	1,30
XQ430600	XQ430600	60x60	1250	1000	6.000	8	1,50	19	8x150	1,30
XQ435700	XQ435700	70x70	1250	1000	6.000	8	1,50	19	10x150	1,30
XQ440800	XQ440800	80x80	1500	1200	10.000	12	1,50	19	10x150	2,90
XQ445900	XQ445900	90x90	1500	1200	10.000	12	1,50	19	10x150	2,90
XQ450100	XQ450100	100x100	1600	1300	13.000	12	1,50	19	12x150	3,40
