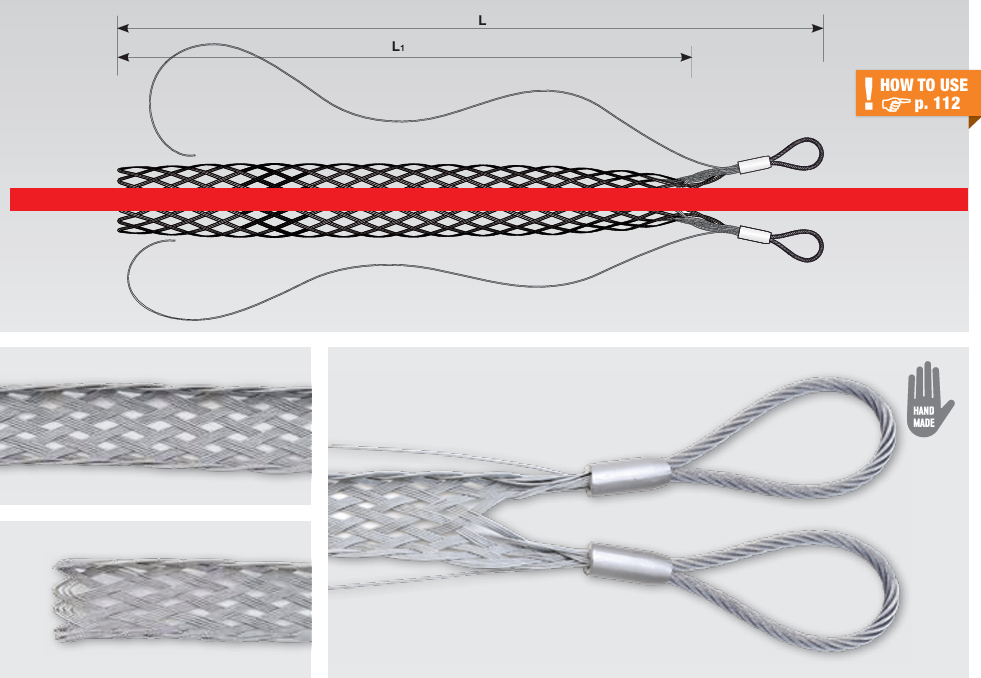

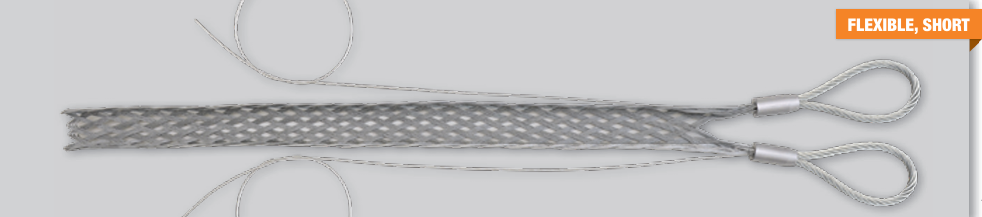

Cable pulling grip with two eyes without thimble, laterally open, including two closing wires

Catalog > Cable pulling grips & Lifting products > Cable pulling grips > Industrial installations > Cable pulling grip with two eyes without thimble, laterally open, including two closing wires

Model	Order No.	Diameter (mm)	Length L (mm)	Length L1 (mm)	Pulling force (daN)	Number of strands	Wire diameter (mm)	Braid type	Number of bundles	Connection (mm)	Weight (kg)
XCTLA130000	XCTLA130000	10-15	800	600	1.400	4	1,25	2	19	5x60	0,16
XCTLA140000	XCTLA140000	15-20	800	600	2.800	5	1,50	2	19	5x60	0,19
XCTLA150000	XCTLA150000	20-25	900	700	4.000	5	1,50	3	19	5x60	0,36
XCTLA180000	XCTLA180000	25-45	900	700	4.500	6	1,50	3	19	6x60	0,44
XCTLA200000	XCTLA200000	45-60	1100	800	4.500	6	1,50	3	19	6x60	0,51
XCTLA210000	XCTLA210000	60-80	1150	900	6.200	6	1,50	4	19	7x80	0,68
XCTLA220000	XCTLA220000	80-100	1300	1000	16.000	8	2,00	4	19	10x120	1,28
XCTLA230000	XCTLA230000	100-140	1350	1200	20.000	10	2,00	4	19	10x150	2,05
