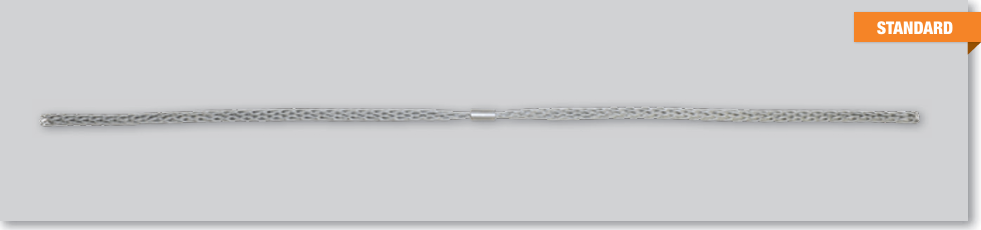

Cable pulling grip for temporary junction with central sleeve

Catalog > Cable pulling grips & Lifting products > Cable pulling grips > Industrial installations > Cable pulling grip for temporary junction with central sleeve

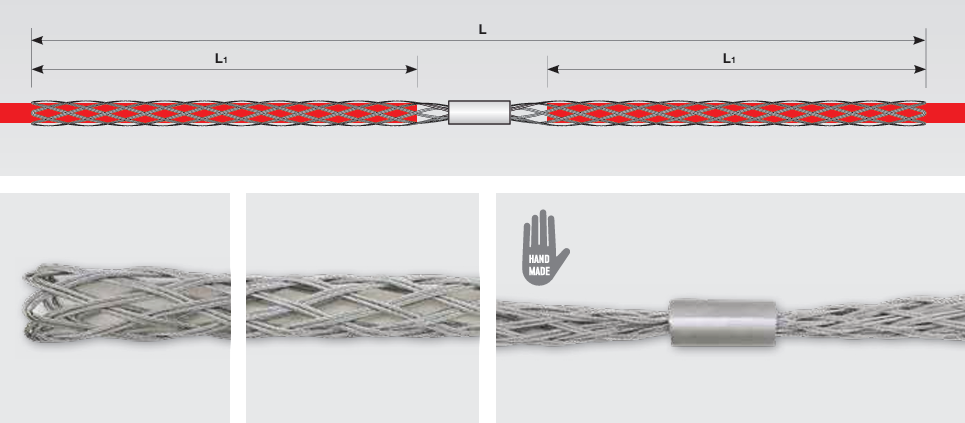

Model Order No. Diameter (mm) Length L (mm) Length L1 (mm) Pulling force (daN) Number of braids Wire diameter (mm) Number of strands Weight (kg) Wishlist
JST429/15 JST429/15 10-15 3100 1500+1500 3.000 5 1,50 7 0,79
JST429/20 JST429/20 15-20 3100 1500+1500 3.000 5 1,50 7 0,85
JST429/30 JST429/30 20-30 3100 1500+1500 3.000 5 1,50 7 0,90
JST429/40 JST429/40 30-40 3100 1500+1500 3.500 6 1,50 7 0,96
JST429/50 JST429/50 40-50 3100 1500+1500 3.500 6 1,50 7 1,14
JST429/60 JST429/60 50-60 3100 1500+1500 3.500 6 1,50 7 1,25
JST429/70 JST429/70 60-70 3100 1500+1500 4.100 7 1,50 7 1,33
JST429/080 JST429/080 60-80 3100 1500+1500 4.700 8 1,50 7 1,38
JST429/80 JST429/80 70-80 3100 1500+1500 4.700 8 1,50 7 1,43
JST429/90 JST429/90 80-90 3100 1500+1500 4.700 8 1,50 7 1,48
JST429/100 JST429/100 80-100 3100 1500+1500 9.400 8 2,00 7 1,57
JT429/100 JT429/100 90-100 3100 1500+1500 9.400 8 2,00 7 2,40
JST429/110 JST429/110 90-110 3100 1500+1500 9.400 8 2,00 7 2,40
JT429/110 JT429/110 100-110 3100 1500+1500 11.000 10 2,00 7 2,50
JST429/120 JST429/120 100-120 3100 1500+1500 11.000 10 2,00 7 2,64
JT429/120 JT429/120 110-120 3100 1500+1500 11.000 10 2,00 7 2,78
JST429/130 JST429/130 120-130 3100 1500+1500 11.000 10 2,00 7 2,94
JST429/150 JST429/150 120-150 3100 1500+1500 11.000 10 2,00 7 3,05
JST429/140 JST429/140 130-140 3100 1500+1500 14.000 12 2,00 7 3,15
JT429/150 JT429/150 140-150 3100 1500+1500 14.000 12 2,00 7 3,27
Product sheet

Examples:
