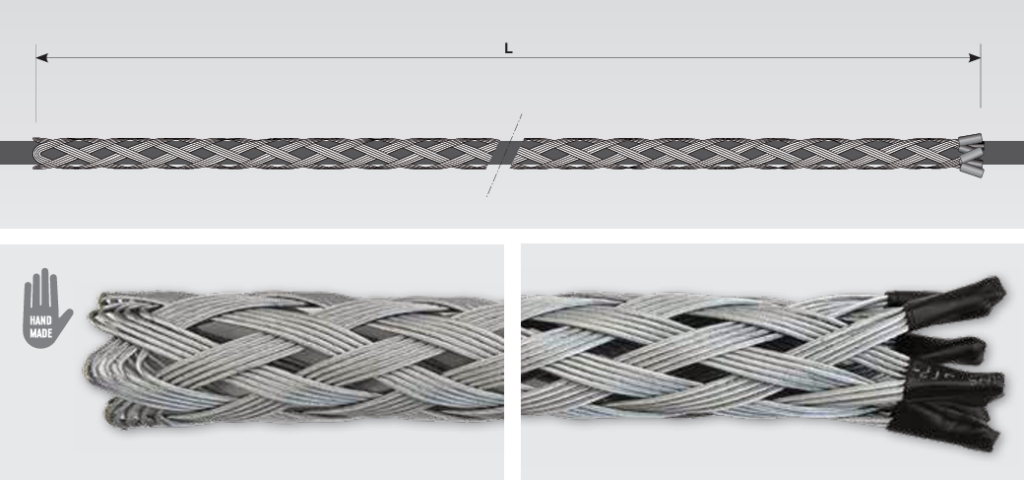

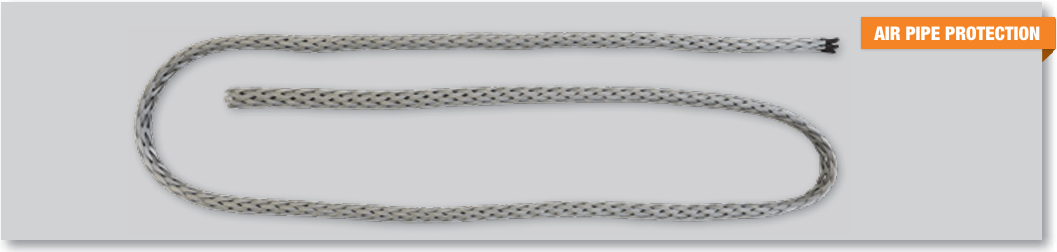

Cable grip for protection against wear of air pipes

Model	Order No.	Diameter (mm)	Diameter (inch)	Length (mm)	Pulling force (daN)	Number of braids	Wire diameter (mm)	Number of strands	Weight (kg)
XPU25500005	XPU25500005	25,50	1	5000	3.500	5	1,25	19	2,10
XPU25500008	XPU25500008	25,50	1	8000	3.500	5	1,25	19	3,40
XPU25500010	XPU25500010	25,50	1	10000	3.500	5	1,25	19	4,20
XPU31537505	XPU31537505	31,5-37,5	1,25-1,5	5000	5.000	6	1,25	19	3,15
XPU31537508	XPU31537508	31,5-37,5	1,25-1,5	8000	5.000	6	1,25	19	5,00
XPU31537510	XPU31537510	31,5-37,5	1,25-1,5	10000	5.000	6	1,25	19	6,30
XPU4451005	XPU4451005	44,5-51,0	1,75-2,0	5000	6.000	6	1,50	19	3,90
XPU4451008	XPU4451008	44,5-51,0	1,75-2,0	8000	6.000	6	1,50	19	6,30
XPU4451010	XPU4451010	44,5-51,0	1,75-2,0	10000	6.000	6	1,50	19	7,80
XPU65000008	XPU65000008	65,0	2,5	8000	10.000	8	1,50	19	8,00
XPU65000010	XPU65000010	65,0	2,5	10000	10.000	8	1,50	19	10,00
XPU80000008	XPU80000008	80,0	3,0	8000	13.000	10	1,50	19	10,00
XPU80000010	XPU80000010	80,0	3,0	10000	13.000	10	1,50	19	12,50
XPU95000008	XPU95000008	95,0	3,75	8000	13.000	10	1,50	19	10,40
XPU95000010	XPU95000010	95,0	3,75	10000	13.000	10	1,50	19	13,00
XPU12100008	XPU12100008	121,0	4,75	8000	15.000	10	1,50	19	12,80
XPU12100010	XPU12100010	121,0	4,75	10000	15.000	10	1,50	19	16,00
