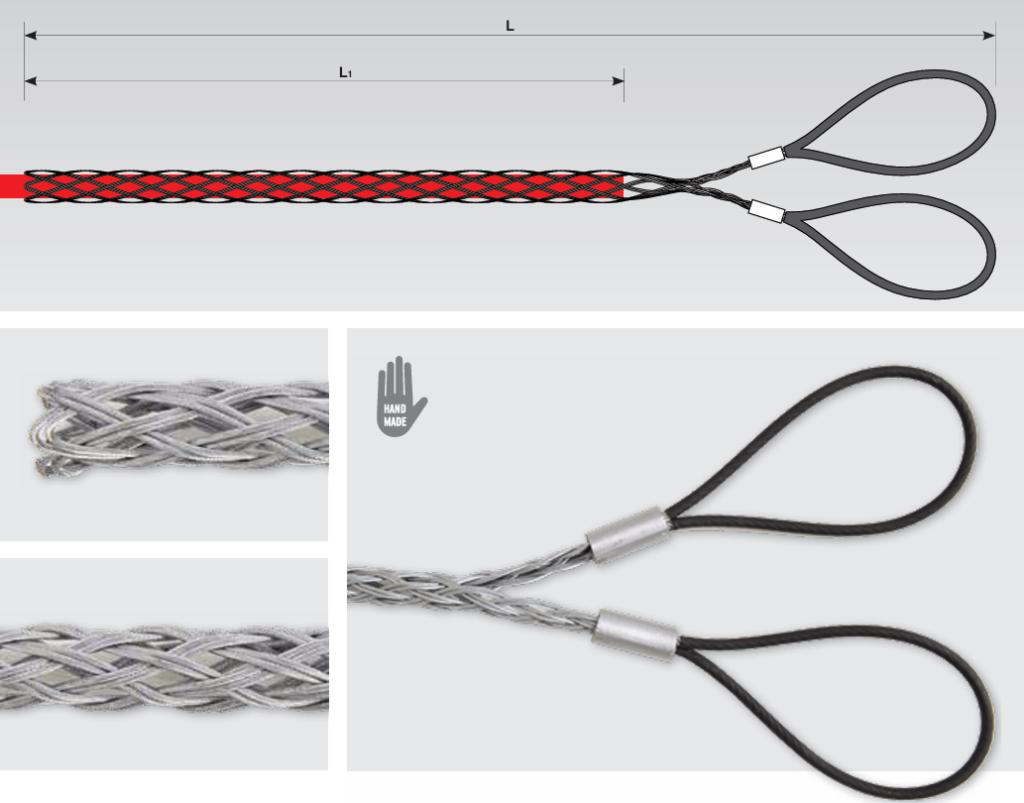

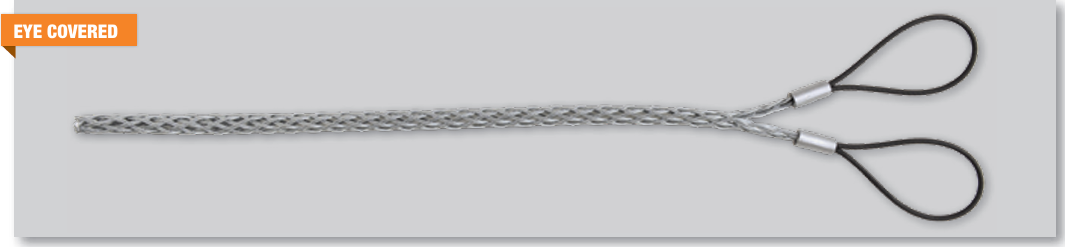

Cable grip fit for pulling or suspension, with two eyes covered by plastic

Catalog > Cable pulling grips & Lifting products > Cable pulling grips > Special grips > Cable grip fit for pulling or suspension, with two eyes covered by plastic

Model	Order No.	Diameter (mm)	Length L (mm)	Length L1 (mm)	Pulling force (daN)	Number of braids	Wire diameter (mm)	Number of strands	Connection (mm)	Weight (kg)
XSTT10152	XSTT10152	10-15	750	500	2.000	4	1,25	19	4x200	0,28
XSTT15202	XSTT15202	15-20	800	550	2.700	5	1,25	19	4x200	0,35
XSTT20302	XSTT20302	20-30	850	600	3.500	5	1,50	19	5x200	0,44
XSTT30402	XSTT30402	30-40	950	700	4.700	6	1,50	19	6x200	0,60
XSTT40502	XSTT40502	40-50	1050	800	4.700	6	1,50	19	6x200	0,66
XSTT50602	XSTT50602	50-60	1100	850	4.700	6	1,50	19	6x200	0,70
XSTT60802	XSTT60802	60-80	1200	900	6.000	8	1,50	19	6x250	0,93
