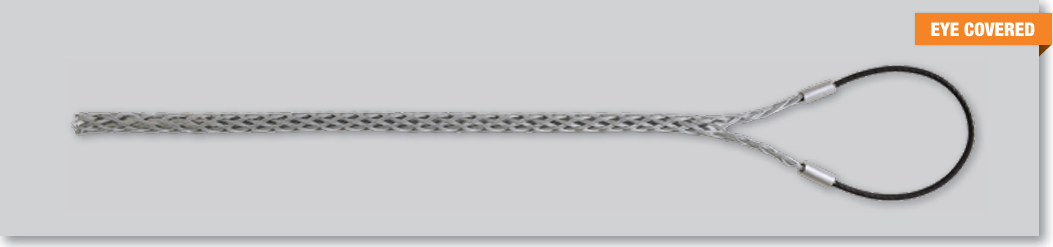

Cable grip fit for pulling or suspension, with one eye covered by plastic

Catalog > Cable pulling grips & Lifting products > Cable pulling grips > Special grips > Cable grip fit for pulling or suspension, with one eye covered by plastic

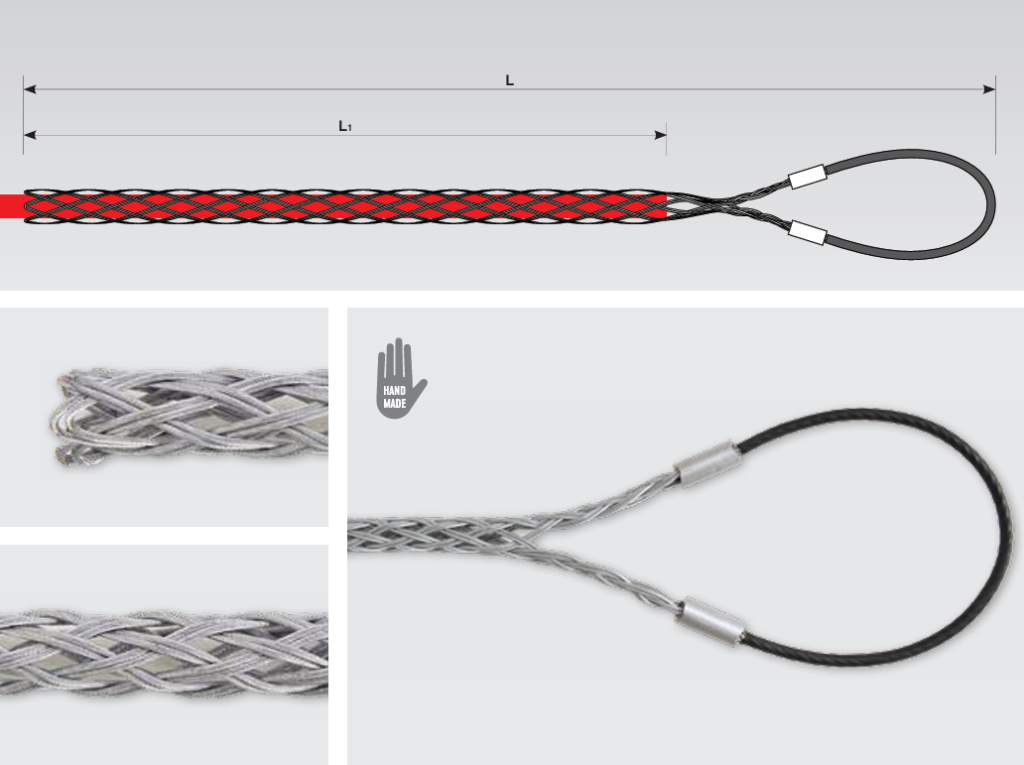

Model	Order No.	Diameter (mm)	Length L (mm)	Length L1 (mm)	Pulling force (daN)	Number of braids	Wire diameter (mm)	Number of strands	Connection (mm)	Weight (kg)
XSTT1015	XSTT1015	10-15	750	500	2.000	4	1,25	19	5x200	0,25
XSTT1520	XSTT1520	15-20	800	550	2.700	5	1,25	19	5x200	0,32
XSTT2030	XSTT2030	20-30	850	600	3.500	5	1,50	19	6x200	0,40
XSTT3040	XSTT3040	30-40	950	700	4.700	6	1,50	19	8x200	0,55
XSTT4050	XSTT4050	40-50	1050	800	4.700	6	1,50	19	8x200	0,60
XSTT5060	XSTT5060	50-60	1100	850	4.700	6	1,50	19	8x200	0,63
XSTT6080	XSTT6080	60-80	1200	900	6.000	8	1,50	19	8x250	0,85
