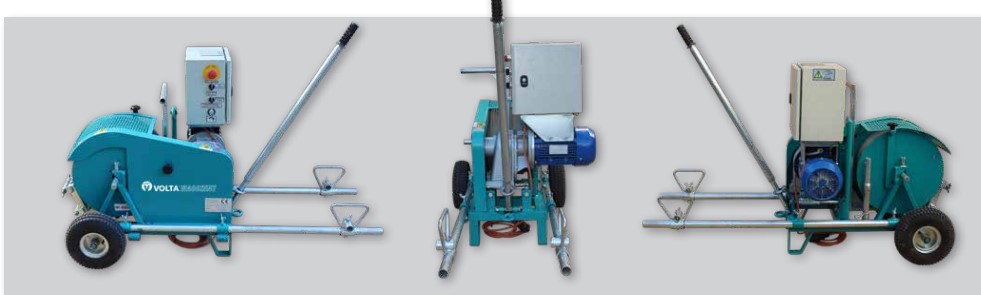

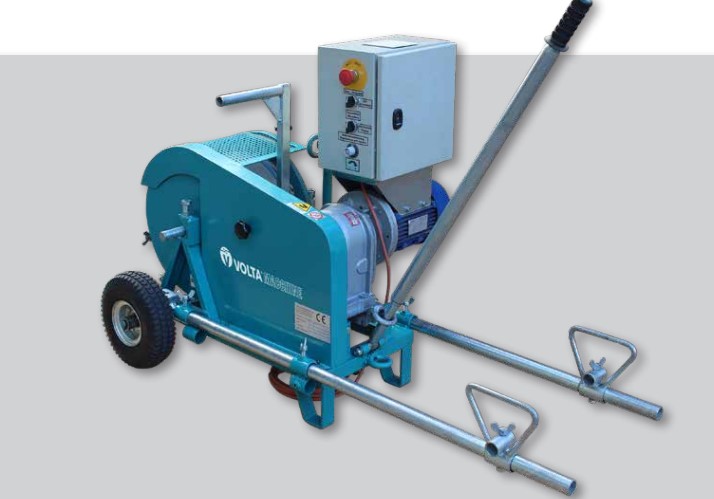

+49 911 830504VM VSW 400 – VM VSW 400 E
Mechanical winch with direct drive drum, suitable for recovery the steel ropes of cable pulling winches and for direct laying of power cables with small dimensions. The rope of the winch can be introduced into the pipe with a piston provided of sealing rings by means of compressed air. At this stage the rope takes place freely from the drum and can be braked via a suitable
control lever. Upon the arrival the rope of the drum winch is connected with the rope winch and than recovered.

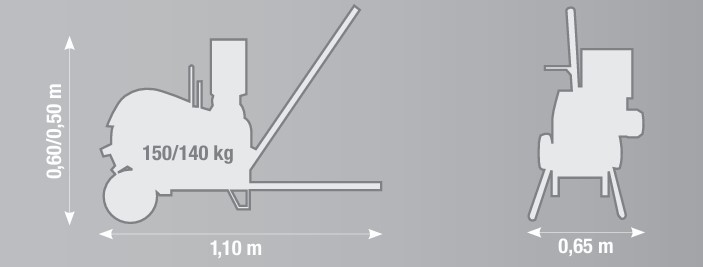

| Model | Order No. | Max pul | - “0” daN - loadless | Rope diameter | Rope length | Engine | Cooling system | Horsepower HP (kW) | Weight without rope | Length | Width | Height | Wishlist |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VM VSW 400 | JVSW40000 | 400 daN | 20 – 70 m/min | 4/5/6 mm | 1.000/750/400 m | Gasoline/Benzin | Air/Luft | 4 (5,5) | 150 kg | 1,10 m | 0,65 m | 0,60 m | |
| VM VSW 400E | JVSW400E0 | 400 daN | 20 – 70 m/min | 4/5/6 mm | 1.000/750/400 m | Electric/Elektrisch | Air/Luft | 7 (5,2) – 220/380 V | 140 kg | 1,10 m | 0,65 m | 0,50 m |
Examples:
Accessories:

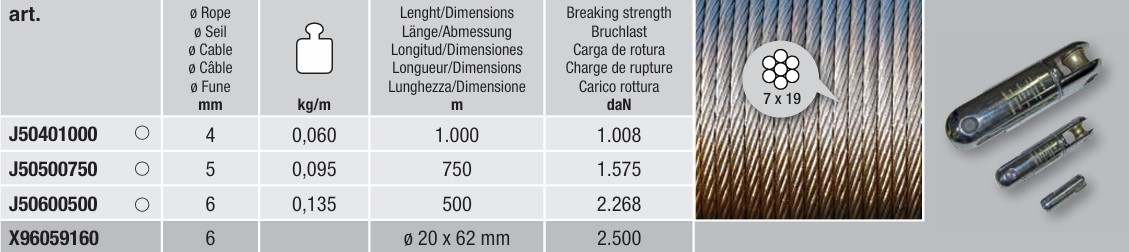

Galvanized steel wire ropes with round section and antitorsion swivel joint.
