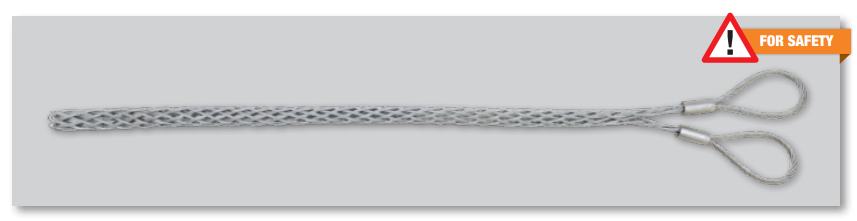

Safety cable grip with two eyes without thimbles, for high pressure pipes

Catalog > Cable pulling grips & Lifting products > Cable pulling grips > Special grips > Safety cable grip with two eyes without thimbles, for high pressure pipes

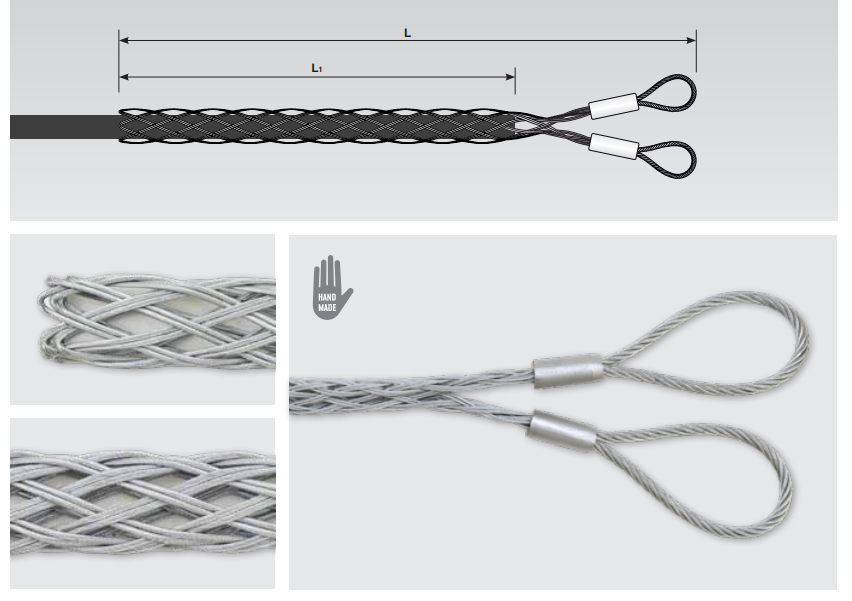

Model	Order No.	Ø mm	L mm	L1 mm	W.L.L. (daN)	No. of braids	Wire diameter (mm)	No. of strands	Dimension Ø × L (mm)	Weight (kg)
X80010152OSA	X80010152OSA	10-15	800	600	1.400 daN	4	1,5 mm	19	4x50	0,25
X80015202OSA	X80015202OSA	15-20	800	600	2.600 daN	5	1,5 mm	19	5x50	0,25
X80020252OSA	X80020252OSA	20-25	800	600	2.600 daN	5	1,5 mm	19	5x50	0,25
X80025302OSA	X80025302OSA	25-30	800	600	3.000 daN	6	1,5 mm	19	5x50	0,45
X80030402OSA	X80030402OSA	30-40	800	600	3.000 daN	6	1,5 mm	19	5x50	0,45
X80040502OSA	X80040502OSA	40-50	800	600	3.000 daN	6	1,5 mm	19	5x50	0,45
X80050602OSA	X80050602OSA	50-60	800	600	3.000 daN	6	1,5 mm	19	5x50	0,45
