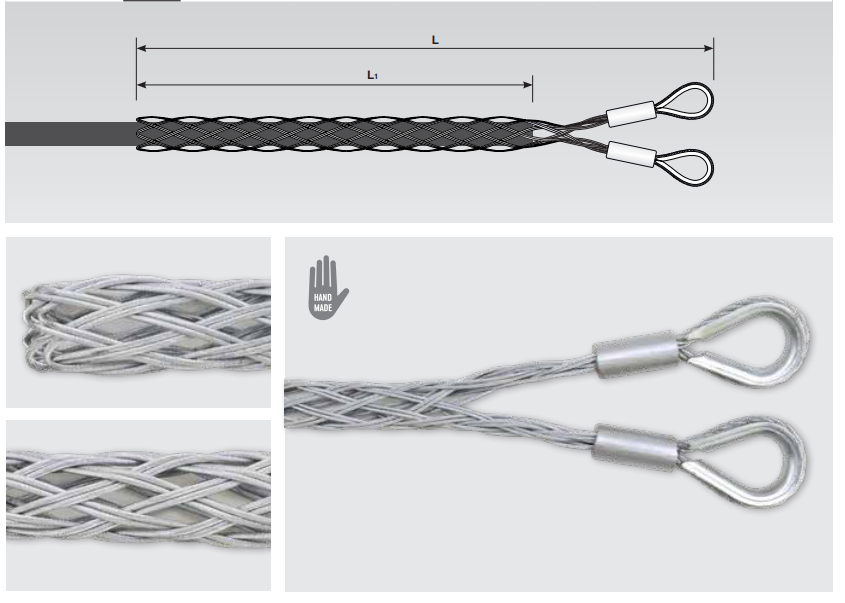

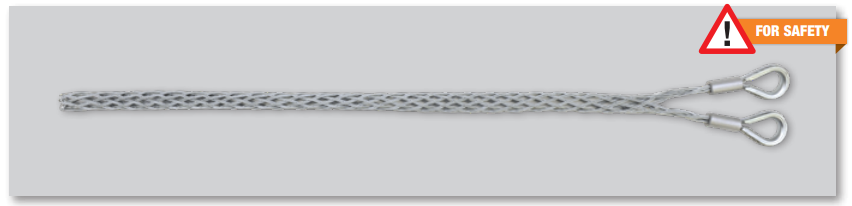

Safety cable grip with two eyes, with thimble, for high pressure pipes

Catalog > Cable pulling grips & Lifting products > Cable pulling grips > Special grips > Safety cable grip with two eyes, with thimble, for high pressure pipes

Model	Order No.	Ø mm	L mm	L1 mm	W.L.L. (daN)	No. of braids	Wire diameter (mm)	No. of strands	Dimension H × D (mm)	Weight (kg)
X80010152OS	X80010152OS	10-15	800	600	1.400 daN	4	1,5 mm	19	14x24	0,30
X80015202OS	X80015202OS	15-20	800	600	2.600 daN	5	1,5 mm	19	14x24	0,30
X80020252OS	X80020252OS	20-25	800	600	2.600 daN	5	1,5 mm	19	14x24	0,30
X80025302OS	X80025302OS	25-30	800	600	3.000 daN	6	1,5 mm	19	14x24	0,50
X80030402OS	X80030402OS	30-40	800	600	3.000 daN	6	1,5 mm	19	14x24	0,50
X80040502OS	X80040502OS	40-50	800	600	3.000 daN	6	1,5 mm	19	14x24	0,50
X80050602OS	X80050602OS	50-60	800	600	3.000 daN	6	1,5 mm	19	14x24	0,50
