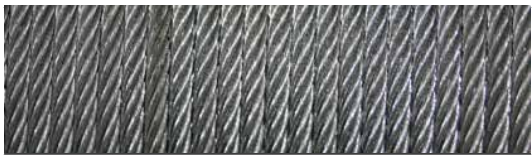

Galvanized steel ropes with round section 7×19

Catalog > Cable pulling grips & Lifting products > Cable pulling grips > Pulling ropes > Galvanized steel ropes with round section 7×19
Model Order No. Ø mm Construction W.L.L. (daN) Weight (kg/m) L mm Wishlist
J50400000 J50400000 4 7x19 1.008 0,060 500-1000
J50500000 J50500000 5 7x19 1.575 0,095 500-1000
J50600000 J50600000 6 7x19 2.268 0,135 500-1000
J50650000 J50650000 6,5 7x19 2.662 0,160 500-1000
J50800000 J50800000 8 7x19 4.033 0,245 500-1000
J51000000 J51000000 10 7x19 6.301 0,380 500-1000
J51100000 J51100000 11 7x19 7.624 0,460 500-1000
J51200000 J51200000 12 7x19 9.074 0,550 500-1000
J51400000 J51400000 14 7x19 12.350 0,750 500-1000
J51600000 J51600000 16 7x19 16.131 0,980 500-1000
J51800000 J51800000 18 7x19 20.416 1,230 500-1000
J52000000 J52000000 20 7x19 25.205 1,520 500-1000
J52200000 J52200000 22 7x19 30.498 1,840 500-1000
