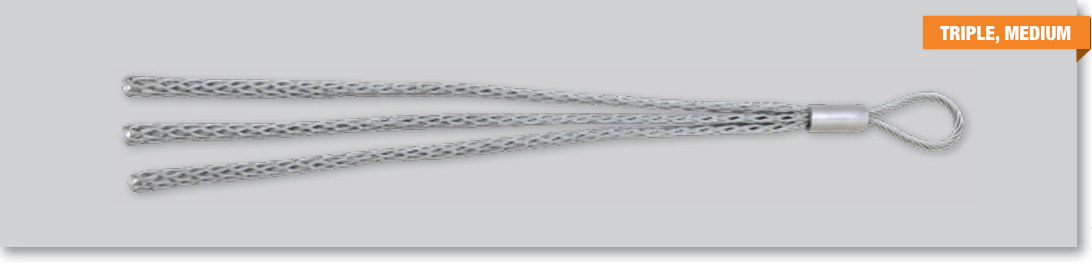

+49 911 830504Cable pulling grips with single eye without thimble, for 3 single cables

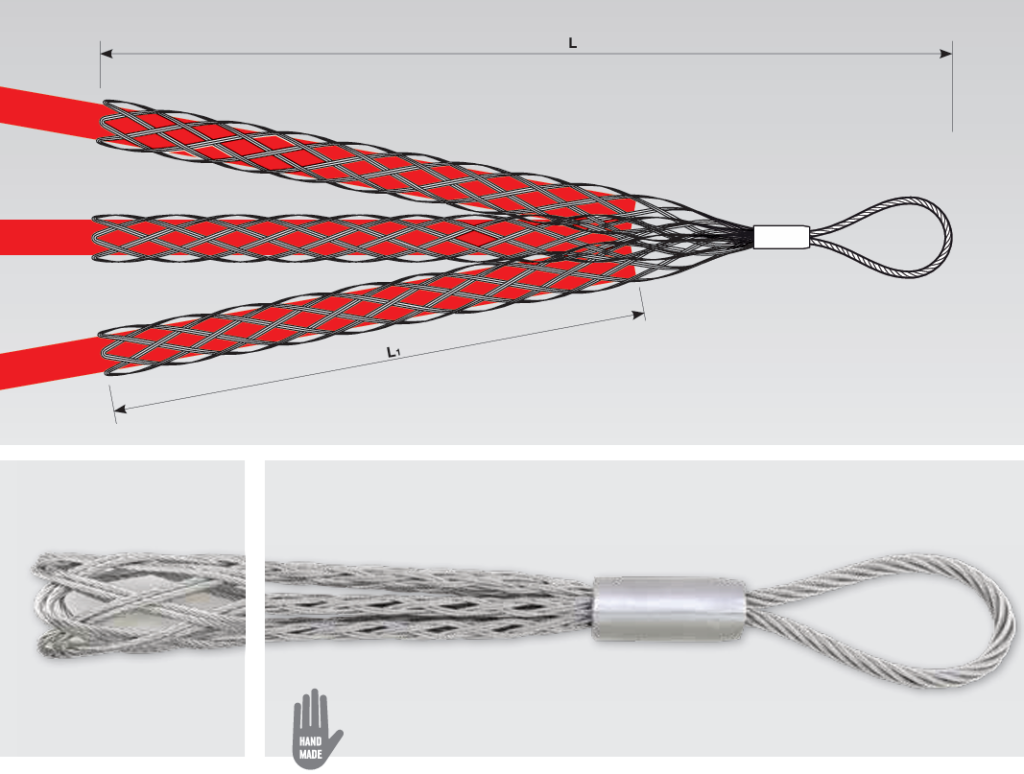

| Model | Order No. | Diameter (mm) | Length L (mm) | Length L1 (mm) | Pulling force (daN) | Number of braids | Wire diameter (mm) | Number of strands | Connection (mm) | Weight (kg) | Wishlist |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JRP125/31520 | JRP125/31520 | 15-20 | 1450 | 1250 | 9.000 | 5 | 1,50 | 7 | 10x150 | 1,08 | |
| JRP125/32030 | JRP125/32030 | 20-30 | 1450 | 1250 | 9.000 | 5 | 1,50 | 7 | 10x150 | 1,20 | |
| JRP125/33040 | JRP125/33040 | 30-40 | 1450 | 1250 | 10.000 | 6 | 1,50 | 7 | 10x150 | 1,32 | |
| JRP125/34050 | JRP125/34050 | 40-50 | 1450 | 1250 | 10.000 | 6 | 1,50 | 7 | 10x150 | 1,44 | |
| JRP125/34060 | JRP125/34060 | 40-60 | 1450 | 1250 | 10.000 | 6 | 1,50 | 7 | 10x150 | 1,56 | |
| JRP125/35060 | JRP125/35060 | 50-60 | 1450 | 1250 | 10.000 | 6 | 1,50 | 7 | 10x150 | 1,56 | |
| JRP125/36070 | JRP125/36070 | 60-70 | 1450 | 1250 | 12.000 | 7 | 1,50 | 7 | 10x150 | 1,68 | |
| JRP125/36080 | JRP125/36080 | 60-80 | 1500 | 1250 | 14.000 | 8 | 1,50 | 7 | 12x150 | 1,74 | |
| JRP125/38090 | JRP125/38090 | 80-90 | 1500 | 1250 | 14.000 | 8 | 1,50 | 7 | 12x150 | 1,82 |
