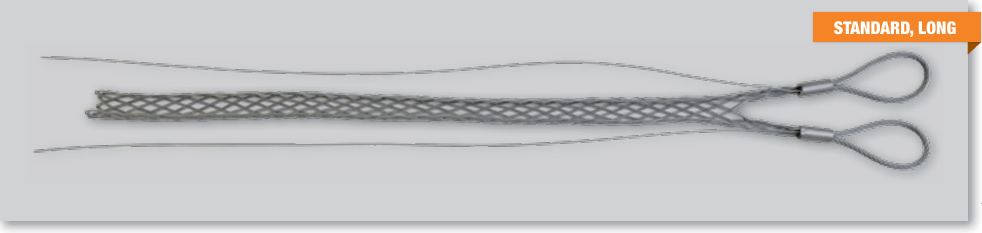

Cable pulling grip with two eyes without thimble, laterally open, including two closing wires

Catalog > Cable pulling grips & Lifting products > Cable pulling grips > Industrial installations > Cable pulling grip with two eyes without thimble, laterally open, including two closing wires

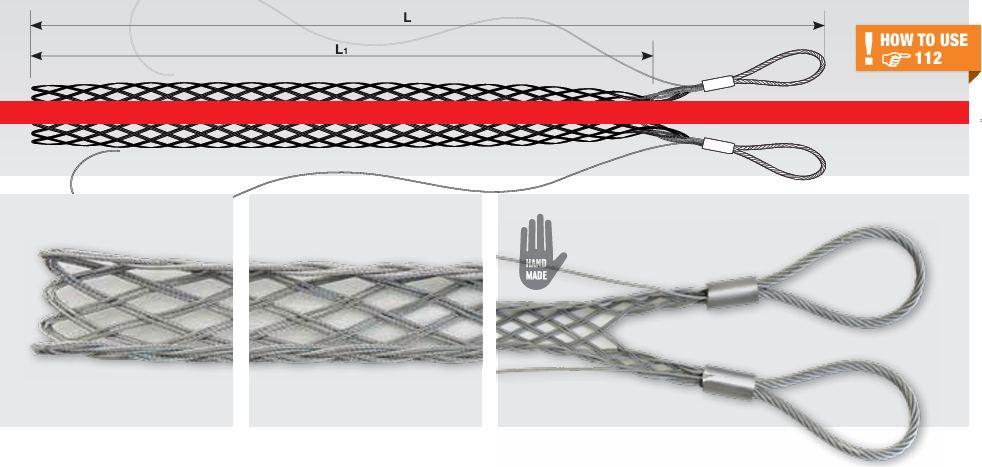

Model	Order No.	Diameter (mm)	Length L (mm)	Length L1 (mm)	Pulling force (daN)	Number of braids	Wire diameter (mm)	Number of strands	Connection (mm)	Weight (kg)
JST315/15A	JST315/15A	10-15	1750	1500	3.000	5	1,50	7	6x100	0,36
JST315/20A	JST315/20A	15-20	1750	1500	3.000	5	1,50	7	6x100	0,39
JST315/30A	JST315/30A	20-30	1750	1500	3.000	5	1,50	7	6x100	0,42
JST315/40A	JST315/40A	30-40	1800	1500	3.500	6	1,50	7	6x150	0,47
JST315/50A	JST315/50A	40-50	1800	1500	3.500	6	1,50	7	6x150	0,51
JST315/60A	JST315/60A	50-60	1800	1500	3.500	6	1,50	7	6x150	0,54
JST315/70A	JST315/70A	60-70	1800	1500	4.100	7	1,50	7	8x150	0,58
JST315/080A	JST315/080A	60-80	1800	1500	4.700	8	1,50	7	8x150	0,60
JST315/80A	JST315/80A	70-80	1800	1500	4.700	8	1,50	7	8x150	0,61
JST315/90A	JST315/90A	80-90	1800	1500	4.700	8	1,50	7	8x150	0,64
JST315/100A	JST315/100A	80-100	1800	1500	9.400	8	2,00	7	8x150	0,68
JT315/100A	JT315/100A	90-100	1800	1500	9.400	8	2,00	7	8x150	0,91
JST315/110A	JST315/110A	90-110	1850	1500	9.400	8	2,00	7	10x200	1,00
JT315/110A	JT315/110A	100-110	1850	1500	11.000	10	2,00	7	10x200	1,04
JST315/120A	JST315/120A	100-120	1850	1500	11.000	10	2,00	7	10x200	1,09
JT315/120A	JT315/120A	110-120	1850	1500	11.000	10	2,00	7	10x200	1,15
JST315/130A	JST315/130A	120-130	1850	1500	11.000	10	2,00	7	10x200	1,21
JST315/150A	JST315/150A	120-150	1850	1500	11.000	10	2,00	7	10x200	1,25
JST315/140A	JST315/140A	130-140	1900	1500	14.000	12	2,00	7	10x200	1,30
JT315/150A	JT315/150A	140-150	1900	1500	14.000	12	2,00	7	10x200	1,35
