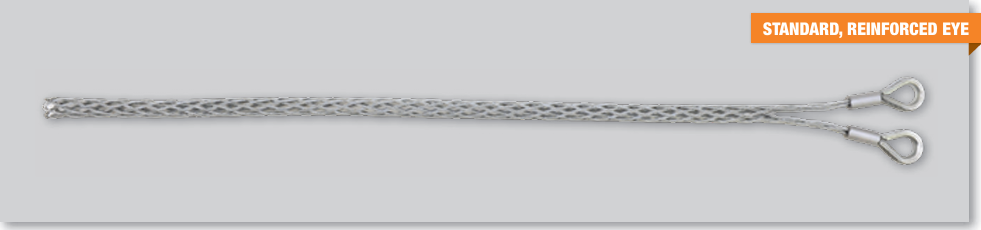

Cable pulling grip with two eyes and thimble, long version

Catalog > Cable pulling grips & Lifting products > Cable pulling grips > Industrial installations > Cable pulling grip with two eyes and thimble, long version

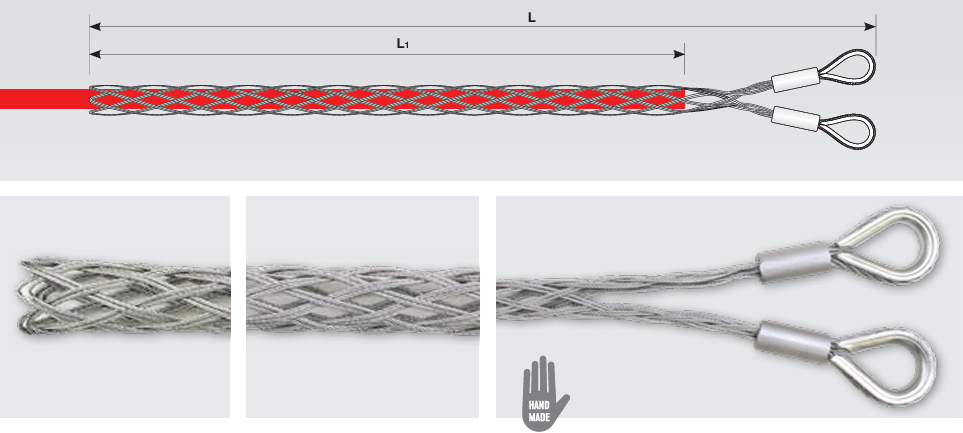

Model Order No. Diameter (mm) Length L (mm) Length L1 (mm) Pulling force (daN) Number of braids Wire diameter (mm) Number of strands Connection (mm) Weight (kg) Wishlist
JST215/15 JST215/15 10-15 1700 1500 3.000 4 1,50 7 14x24 0,42
JST215/20 JST215/20 15-20 1700 1500 3.000 5 1,50 7 14x24 0,45
JST215/30 JST215/30 20-30 1700 1500 3.000 5 1,50 7 14x24 0,50
JST215/40 JST215/40 30-40 1700 1500 3.500 6 1,50 7 14x24 0,55
JST215/50 JST215/50 40-50 1700 1500 3.500 6 1,50 7 14x24 0,60
JST215/60 JST215/60 50-60 1700 1500 3.500 6 1,50 7 14x24 0,64
JST215/70 JST215/70 60-70 1700 1500 4.100 7 1,50 7 15x29 0,68
JST215/080 JST215/080 60-80 1700 1500 4.700 8 1,50 7 15x29 0,70
JST215/80 JST215/80 70-80 1700 1500 4.700 8 1,50 7 15x29 0,72
JST215/90 JST215/90 80-90 1700 1500 4.700 8 1,50 7 15x29 0,75
JST215/100 JST215/100 80-100 1700 1500 9.400 8 2,00 7 15x29 0,80
JT215/100 JT215/100 90-100 1700 1500 9.400 8 2,00 7 18x32 1,07
JST215/110 JST215/110 90-110 1700 1500 9.400 8 2,00 7 18x32 1,17
JT215/110 JT215/110 100-110 1750 1500 11.000 10 2,00 7 18x32 1,22
JST215/120 JST215/120 100-120 1750 1500 11.000 10 2,00 7 18x32 1,28
JT215/120 JT215/120 110-120 1750 1500 11.000 10 2,00 7 18x32 1,35
JST215/130 JST215/130 120-130 1750 1500 11.000 10 2,00 7 21x38 1,42
JST215/150 JST215/150 120-150 1750 1500 11.000 10 2,00 7 21x38 1,47
JST215/140 JST215/140 130-140 1750 1500 14.000 12 2,00 7 21x38 1,52
JT215/150 JT215/150 140-150 1750 1500 14.000 12 2,00 7 21x38 1,58
Product sheet

Examples:
