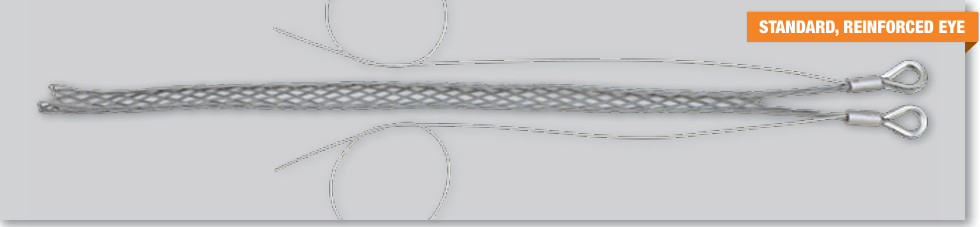

Cable pulling grip with two eyes and thimble, laterally open, including two closing wires

Catalog > Cable pulling grips & Lifting products > Cable pulling grips > Industrial installations > Cable pulling grip with two eyes and thimble, laterally open, including two closing wires

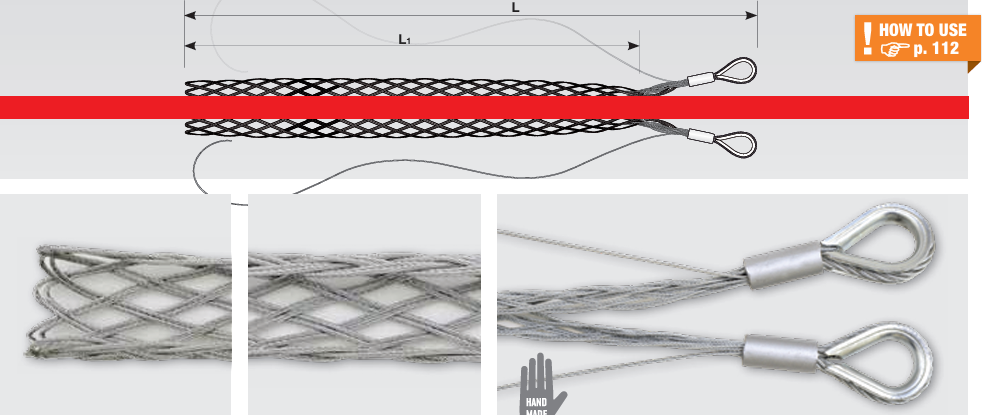

Model Order No. Diameter (mm) Length L (mm) Length L1 (mm) Pulling force (daN) Number of braids Wire diameter (mm) Number of strands Connection (mm) Weight (kg) Wishlist
JST312/15 JST312/15 10-15 1450 1250 3.000 5 1,50 7 14x24 0,36
JST312/20 JST312/20 15-20 1450 1250 3.000 5 1,50 7 14x24 0,38
JST312/30 JST312/30 20-30 1450 1250 3.000 5 1,50 7 14x24 0,43
JST312/40 JST312/40 30-40 1450 1250 3.500 6 1,50 7 14x24 0,46
JST312/50 JST312/50 40-50 1450 1250 3.500 6 1,50 7 14x24 0,50
JST312/60 JST312/60 50-60 1450 1250 3.500 6 1,50 7 14x24 0,54
JST312/70 JST312/70 60-70 1500 1250 4.100 7 1,50 7 15x29 0,56
JST312/080 JST312/080 60-80 1500 1250 4.700 8 1,50 7 15x29 0,59
JST312/80 JST312/80 70-80 1500 1250 4.700 8 1,50 7 15x29 0,60
JST312/90 JST312/90 80-90 1500 1250 4.700 8 1,50 7 15x29 0,64
JST312/100 JST312/100 80-100 1550 1250 9.400 8 2,00 7 15x29 0,67
JT312/100 JT312/100 90-100 1550 1250 9.400 8 2,00 7 18x32 1,00
JST312/110 JST312/110 90-110 1550 1250 9.400 8 2,00 7 18x32 1,00
JT312/110 JT312/110 100-110 1550 1250 11.000 10 2,00 7 18x32 1,15
JST312/120 JST312/120 100-120 1550 1250 11.000 10 2,00 7 18x32 1,20
JT312/120 JT312/120 110-120 1550 1250 11.000 10 2,00 7 18x32 1,25
JST312/130 JST312/130 120-130 1550 1250 11.000 10 2,00 7 21x38 1,32
JST312/150 JST312/150 120-150 1550 1250 11.000 10 2,00 7 21x38 1,38
JST312/140 JST312/140 130-140 1550 1250 14.000 12 2,00 7 21x38 1,44
JT312/150 JT312/150 140-150 1550 1250 14.000 12 2,00 7 21x38 1,50
Product sheet

Examples:
