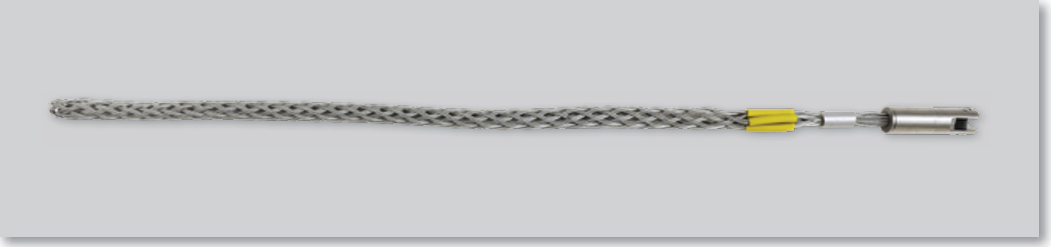

Cable pulling grip with swivelling connection device

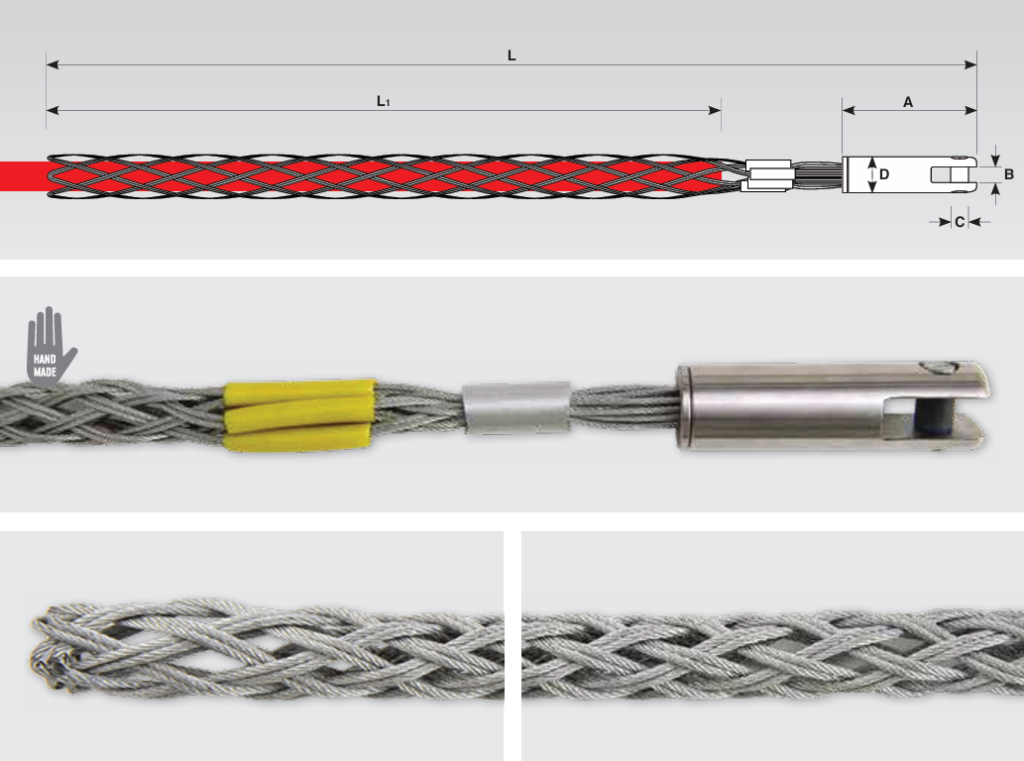

Model	Order No.	Diameter (mm)	Length L (mm)	Length L1 (mm)	Pulling force (daN)	Number of braids	Wire diameter (mm)	Number of strands	D (mm)	A (mm)	B (mm)	C (mm)	Weight (kg)
XGIR1520	XGIR1520	15-20	900	700	5.000	5	2,0	49	28	110	13	12	2,70
XGIR2025	XGIR2025	20-25	1000	800	5.000	5	2,0	49	28	110	13	12	2,90
XGIR2540	XGIR2540	25-40	1050	850	5.000	5	2,0	49	28	110	13	12	3,10
XGIR4055	XGIR4055	40-55	1100	900	5.000	5	2,0	49	28	110	13	12	3,30
XGIR5570	XGIR5570	55-70	1200	1000	8.500	6	2,0	49	35	125	17	16	3,50
XGIR7090	XGIR7090	70-90	1300	1100	10.000	7	2,0	49	35	125	17	16	3,70
XGIR90110	XGIR90110	90-100	1500	1200	10.000	7	2,0	49	35	125	17	16	3,90
