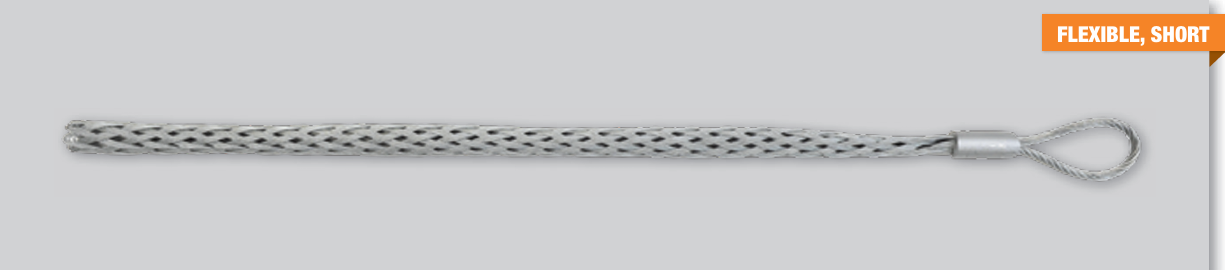

Cable pulling grip with single eye without thimble

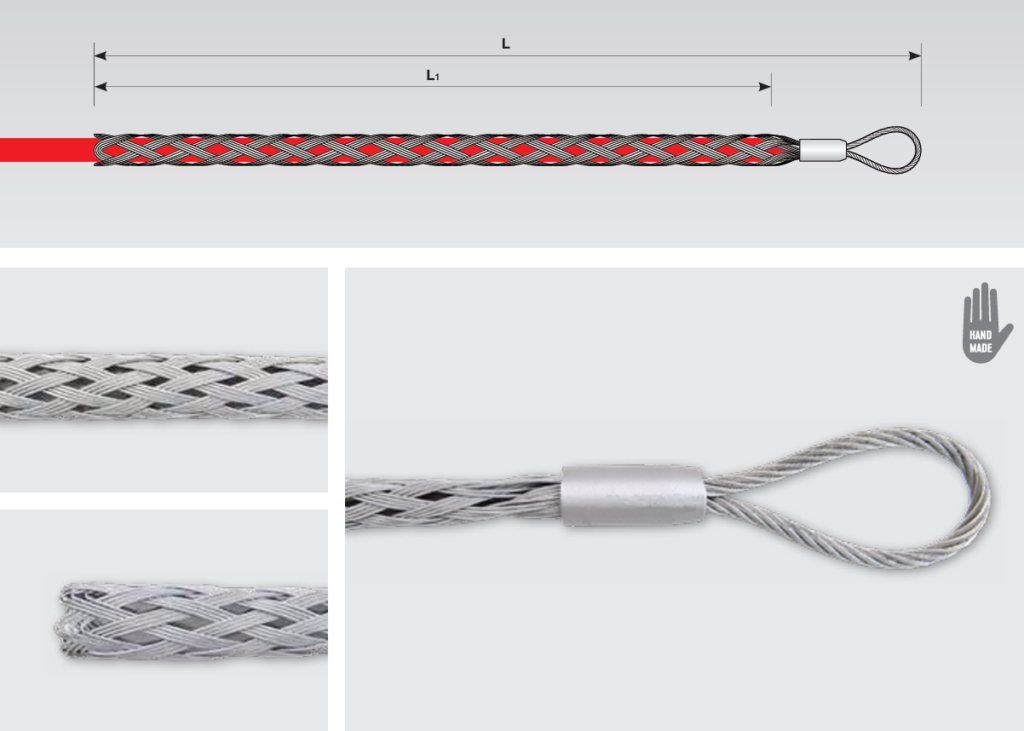

Model	Order No.	Diameter (mm)	Length L (mm)	Length L1 (mm)	Pulling force (daN)	Number of strands	Wire diameter (mm)	Braid type	Number of bundles	Connection (mm)	Weight (kg)
XCT130000	XCT130000	10-15	800	600	1.400	4	1,25	2	19	5x60	0,15
XCT140000	XCT140000	15-20	800	600	2.800	5	1,50	2	19	6x60	0,17
XCT150000	XCT150000	20-25	900	700	4.000	5	1,50	3	19	6x60	0,32
XCT180000	XCT180000	25-45	900	700	4.500	6	1,50	3	19	7x60	0,40
XCT200000	XCT200000	45-60	1100	800	4.500	6	1,50	3	19	7x80	0,47
XCT210000	XCT210000	60-80	1150	900	6.200	6	1,50	4	19	8x80	0,62
XCT220000	XCT220000	80-100	1300	1000	16.000	8	2,00	4	19	12x120	1,17
XCT230000	XCT230000	100-140	1350	1200	20.000	10	2,00	4	19	14x150	1,89
