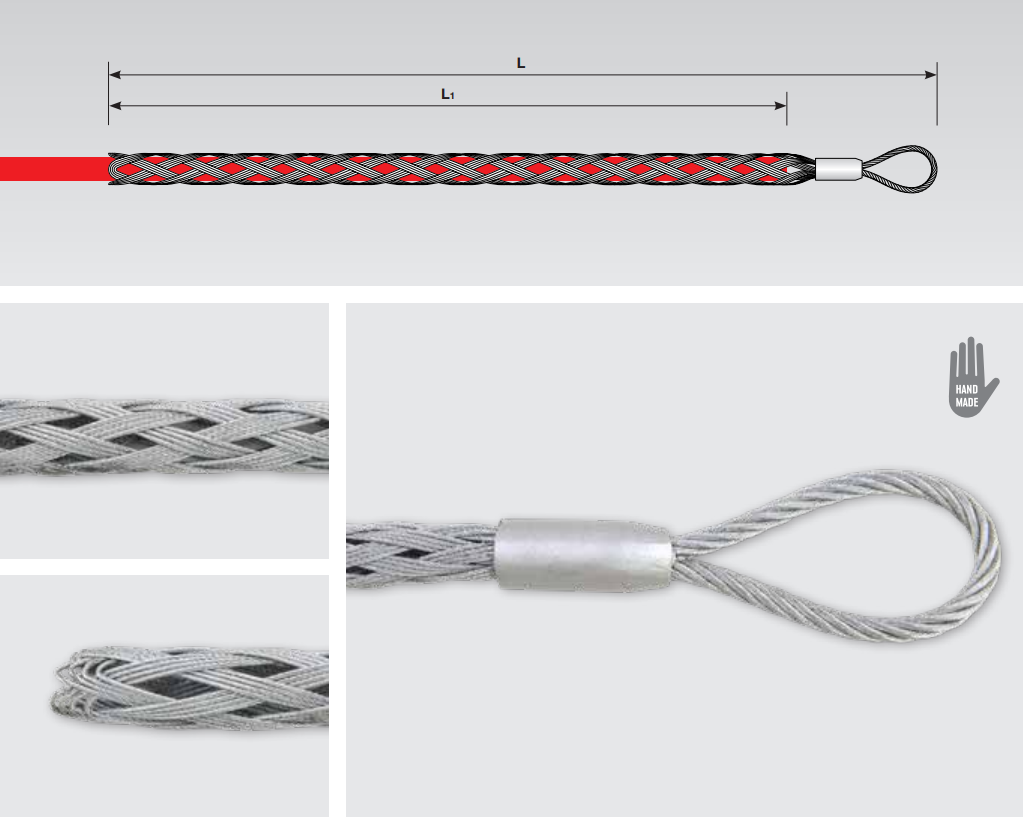

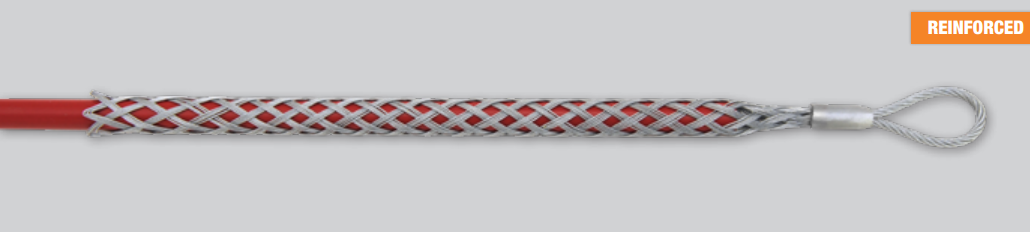

+49 911 830504Cable pulling grip with single eye, reinforced type
| Model | Order No. | Diameter (mm) | Length L (mm) | Length L1 (mm) | Pulling force (daN) | Number of strands | Wire diameter (mm) | Braid type | Number of bundles | Connection (mm) | Weight (g) | Wishlist |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GVGCT912AR | GVGCT912AR | 9-12 | 500 | 440 | 1100 | 4 | 0,8 | 3 | 7 | 3 x 30 | 15 | |
| GVGCT1215AR | GVGCT1215AR | 12-15 | 520 | 460 | 1400 | 5 | 0,8 | 3 | 7 | 3,2 x 30 | 25 | |
| GVGCT1519AR | GVGCT1519AR | 15-19 | 580 | 500 | 2000 | 5 | 0,8 | 4 | 7 | 4 x 40 | 35 | |
| GVGCT1925AR | GVGCT1925AR | 19-25 | 650 | 550 | 2300 | 6 | 0,8 | 4 | 7 | 5 x 50 | 60 | |
| GVGCT2531AR | GVGCT2531AR | 25-31 | 700 | 600 | 3000 | 6 | 0,8 | 5 | 7 | 6 x 50 | 70 |
