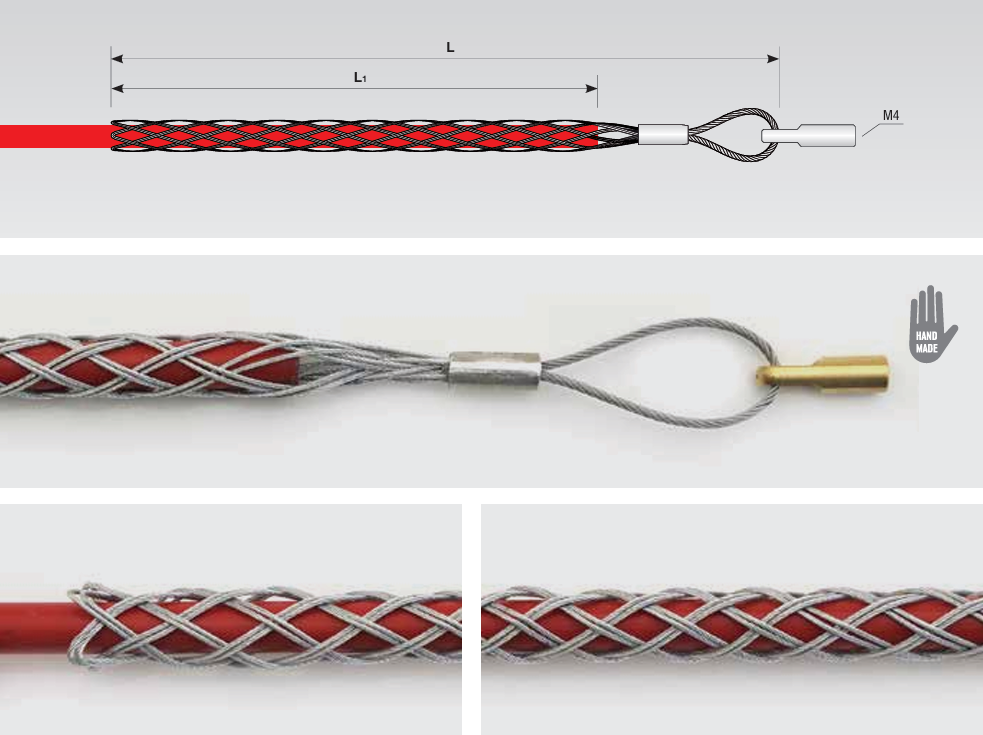

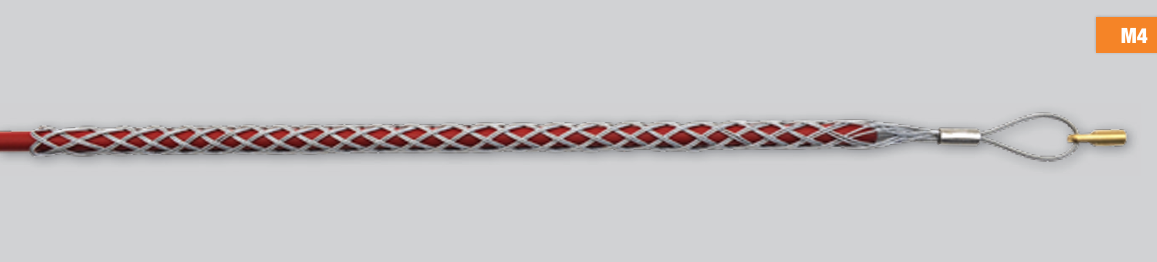

+49 911 830504Cable pulling grip with single eye and screwed connector, M4
| Model | Order No. | Diameter (mm) | Length L (mm) | Length L1 (mm) | Pulling force (daN) | Number of strands | Wire diameter (mm) | Braid type | Number of bundles | Connection (mm) | Weight (g) | Wishlist |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GVGCT46AM4 | GVGCT46AM4 | 4-6 | 200 | 170 | 130 | 4 | 0,7 | 1 | 7 | 2x15+M4 | 5 | |
| GVGCT69AM4 | GVGCT69AM4 | 6-9 | 210 | 180 | 130 | 4 | 0,7 | 1 | 7 | 2x15+M4 | 17 | |
| GVGCT912AM4 | GVGCT912AM4 | 9-12 | 350 | 310 | 130 | 4 | 0,7 | 1 | 7 | 2x15+M4 | 15 | |
| GVGCT1215AM4 | GVGCT1215AM4 | 12-15 | 350 | 310 | 130 | 4 | 0,7 | 2 | 7 | 2x15+M4 | 25 | |
| GVGCT1519AM4 | GVGCT1519AM4 | 15-19 | 350 | 310 | 130 | 5 | 0,7 | 2 | 7 | 2x15+M4 | 35 | |
| GVGCT1925AM4 | GVGCT1925AM4 | 19-25 | 400 | 360 | 130 | 6 | 0,7 | 2 | 7 | 2x15+M4 | 60 | |
| GVGCT2531AM4 | GVGCT2531AM4 | 25-31 | 400 | 360 | 130 | 6 | 0,7 | 2 | 7 | 2x15+M4 | 70 |
Examples:
