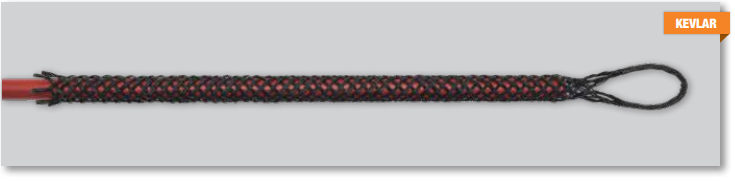

Cable pulling grip made by Kevlar® with single eye

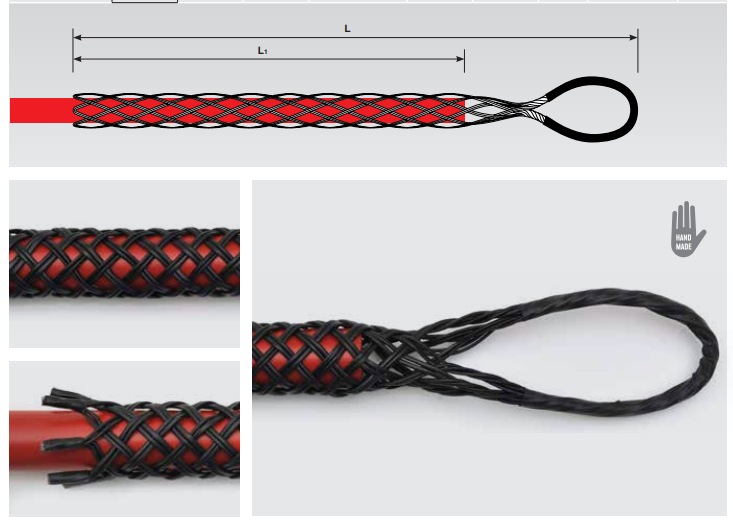

Model	Order No.	Ø mm	L mm	L1 mm	W.L.L. (daN)	No. of braids	Wire diameter (mm)	Braid size	Weight (kg)
XKC115/20	XKC115/20	15-20	1500	1300	1.700 daN	4	2,5 mm	8x150	0,40
XKC115/30	XKC115/30	20-30	1500	1300	1.700 daN	4	2,5 mm	8x150	0,48
XKC115/40	XKC115/40	30-40	1500	1300	2.200 daN	5	2,5 mm	10x150	0,55
XKC115/50	XKC115/50	40-50	1500	1300	2.600 daN	6	2,5 mm	12x150	0,63
XKC115/60	XKC115/60	50-60	1500	1300	2.600 daN	6	2,5 mm	12x150	0,70
XKC115/70	XKC115/70	60-70	1500	1300	4.000 daN	6	2,5 mm	14x150	0,78
XKC115/80	XKC115/80	70-80	1500	1300	5.200 daN	8	2,5 mm	18x150	0,92
XKC115/90	XKC115/90	80-90	1500	1300	5.200 daN	8	2,5 mm	18x150	1,05
