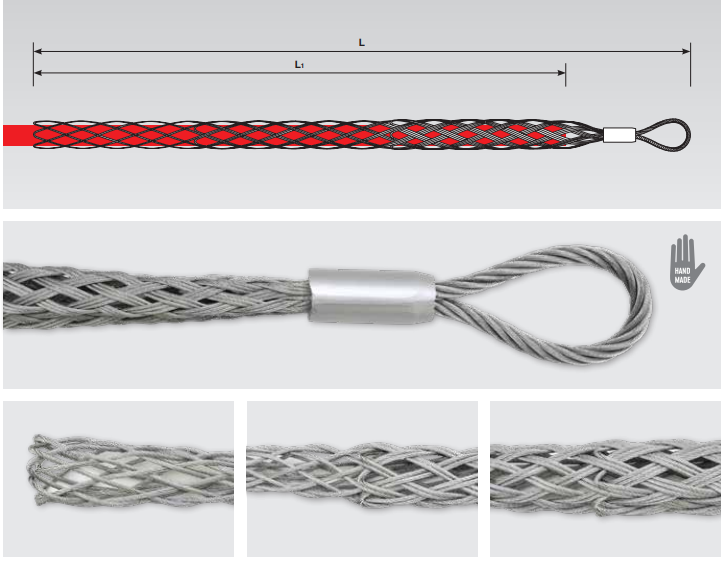

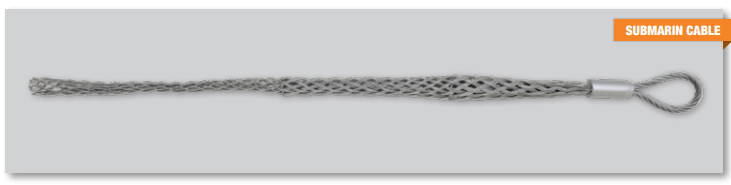

Cable pulling grip for underwater cables, with single eye without thimble

Catalog > Cable pulling grips & Lifting products > Cable pulling grips > Special grips > Cable pulling grip for underwater cables, with single eye without thimble

Model	Order No.	Ø mm	L mm	L1 mm	Nutzlast [daN]	Geflechtanzahl	Drahtaufbau	Anzahl Litzen	Geflechtmaß	Gewicht [kg]	Ø x L
XNC065080	XNC065080	65-80	2600	2300	25.000 daN	6	3,2-3,2-3,2	3	133	16x150	5,0
XNC080100	XNC080100	80-100	2900	2500	33.000 daN	8	3,2-3,2-3,2	3	133	18x200	7,0
XNC130150	XNC100130	100-130	3100	2700	40.000 daN	10	3,2-3,2-3,2	3	133	20x250	9,0
XNC130150	XNC130150	130-150	4000	3500	65.000 daN	10	4,0-4,0-4,0	3	133	24x300	17,0
XNC150180	XNC150180	150-180	4700	4200	90.000 daN	10	4,8-4,8-4,8	3	133	28x300	30,0
XNC180220	XNC180220	180-220	5100	4500	110.000 daN	12	4,8-4,8-4,8	3	133	32x350	38,0
