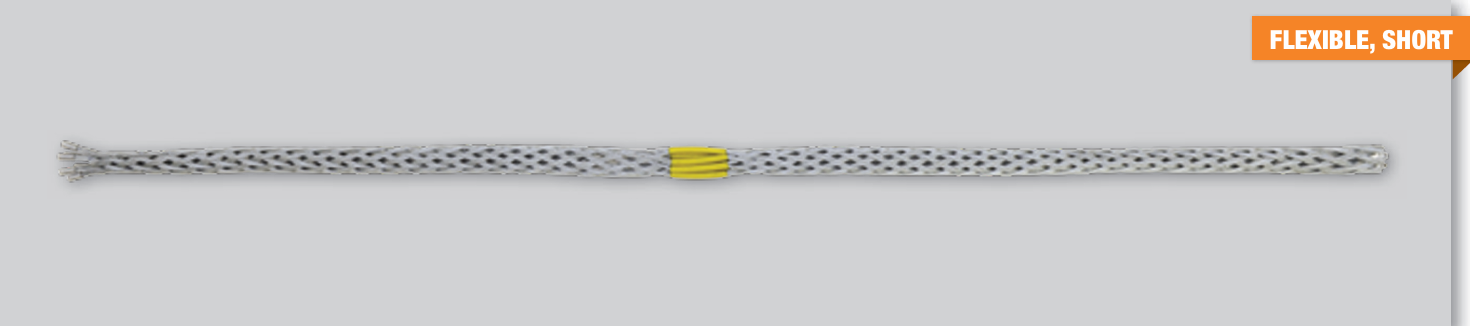

Cable pulling grip for temporary junction

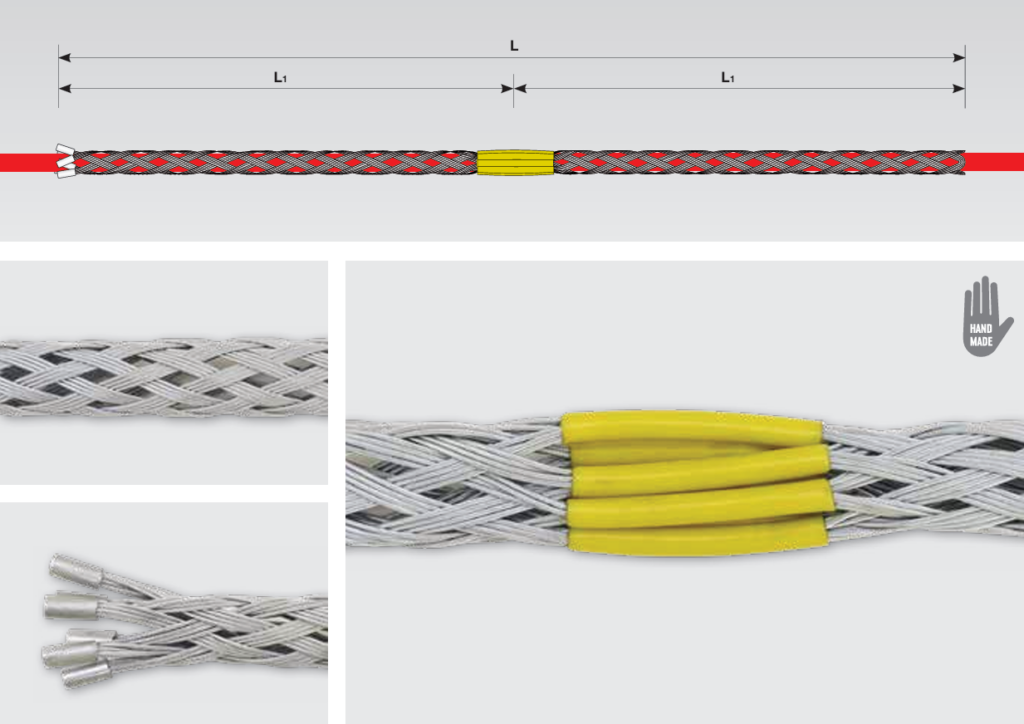

Model	Order No.	Diameter (mm)	Length L (mm)	Length L1 (mm)	Pulling force (daN)	Number of strands	Wire diameter (mm)	Braid type	Number of bundles	Weight (kg)
XGA10/015	XGA10/015	10-15	1200	600+600	1.400	4	1,25	2	19	0,30
XGA15/020	XGA15/020	15-20	1200	600+600	2.800	5	1,50	2	19	0,35
XGA20/025	XGA20/025	20-25	1400	700+700	4.000	5	1,50	3	19	0,65
XGA25/045	XGA25/045	25-45	1400	700+700	4.500	6	1,50	3	19	0,80
XGA45/060	XGA45/060	45-60	1600	800+800	4.500	6	1,50	3	19	0,90
XGA60/080	XGA60/080	60-80	1800	900+900	6.200	6	1,50	4	19	1,25
XGA80/100	XGA80/100	80-100	2000	1000+1000	16.000	8	2,00	4	19	2,30
XGA100/140	XGA100/140	100-140	2400	1200+1200	20.000	10	2,00	4	19	3,80
