+49 911 830504VOLTAKONG • ø 13 mm

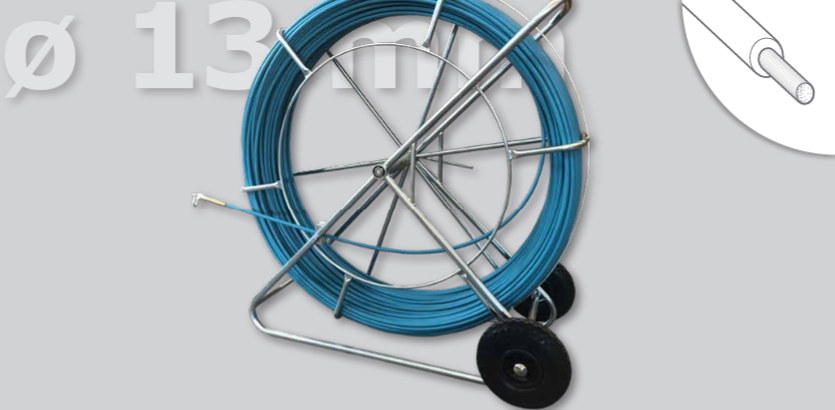

Fiberglass Rod VOLTAKONG ø 13,0 mm with Polypropylene outer coating comes spooled on a wheeled vertical galvanised steel cage with reel ø 1200 mm with starting/ending M12 threaded ends and starting spinner with shackle.
| Model | Order No. | ø mm | m | kg | Wishlist |
|---|---|---|---|---|---|
| GVKO150(HB/SCC) | GVKO150(HB/SCC) | 13 | 150 | 65 | |
| GVKO200(HB/SCC) | GVKO200(HB/SCC) | 13 | 200 | 76 | |
| GVKO250(HB/SCC) | GVKO250(HB/SCC) | 13 | 250 | 87 | |
| GVKO300(HB/SCC) | GVKO300(HB/SCC) | 13 | 300 | 98 | |
| GVKO350(HB/SCC) | GVKO350(HB/SCC) | 13 | 350 | 109 | |
| GVKO400(HB/SCC) | GVKO400(HB/SCC) | 13 | 400 | 120 |
Accessories:
Spare Fiberglass rods ø 13 mm with Polypropylene outer coating and starting/
ending M12 threaded junctions, spooled on transport drum
---
Starting roller made of aluminium alloy with M12 thread
---
Starting spinner made of aluminium alloy with shackle and M12 thread [D Anfangsbirne
aus Aluminium M12 mit Schäkel [E] Cabeza guía en aluminio M12 con grillete de enganche
[F] Embout en aluminium M12 avec manille [I] Ogiva in alluminio M12 con grillo d’aggancio
art. ø mm gr
GVM12OGGR 35 91
[EN] Starting spinner made of aluminium alloy M12 threaded
---
Rotating supple coupling with M12 thread
---
Repairing set for rods Ø 13 mm, consisting of 5 pieces
---
Starting/Ending threaded ends with M12 thread, for rod ø 13 mm
---
Coupling joints for rod ø 13 mm
---
2-Components Epoxy glue, 24 ml
---
Galvanised steel coupling device M12 threaded, for linking the ends of two rods
ø 9-11-15 mm (couple)
---
Nylon duct brushes on a Teflon kernel with pulling eyelets on both sides
---
Galvanised wheeled steel cage, vertical version with reel ø 1200 mm, fit for 150ø 1200 mm
450 m of Fiberglass rod ø 13,0 mm
---
Mechanical meter-counter for glass fibre rods, suitable for the application on the rod
cages
---
Spare standard rod guide for steel cage type GVAV120R
---
Nylon rod guide for steel cage type GVAV120R
---
Spare rod guide rollers for steel cage type GVAV120R
---
Rubber wheel with polyurethane foam core
---
Cotter pin for wheel locking, open type, ø 20 mm
---
Accessories bag for vertical steel cages
