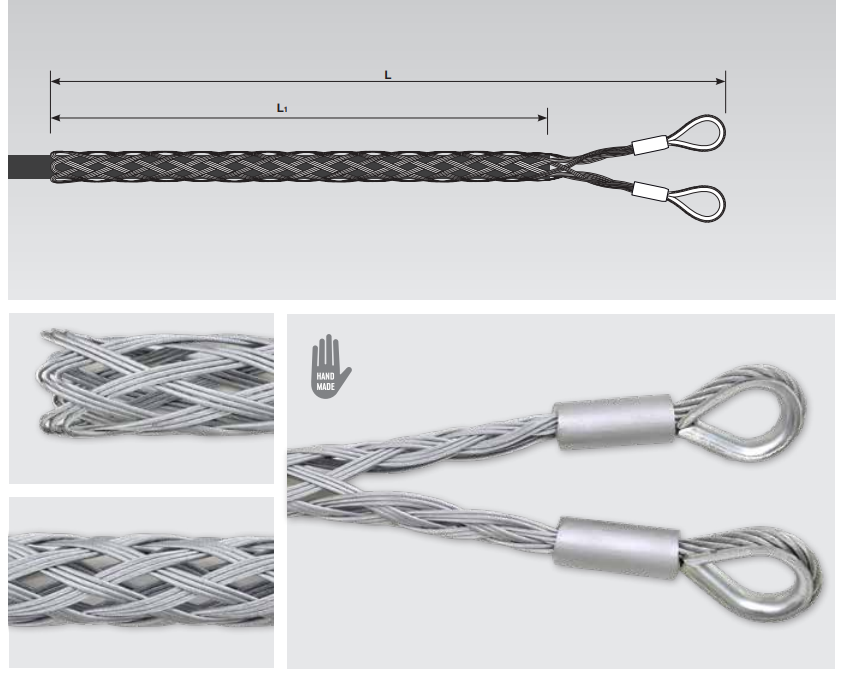

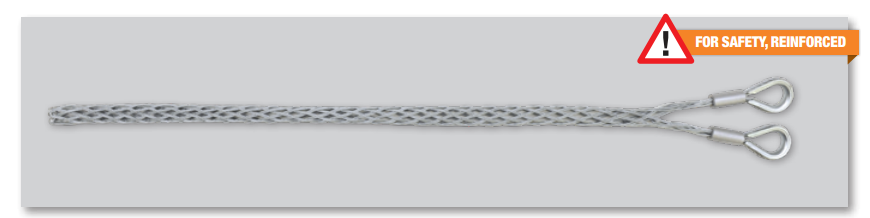

+49 911 830504Reinforced safety cable grip with two eyes with thimbles, for high pressure pipes
| Model | Order No. | Ø mm | L mm | L1 mm | W.L.L. (daN) | No. of braids | Wire diameter (mm) | No. of strands | Dimension H × D (mm) | Weight (kg) | Wishlist |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XAP25402OS | XAP25402OS | 25-40 | 1050 | 800 | 7.000 daN | 6 | 2,0 mm | 19 | 18x32 | 1,10 | |
| XAP35502OS | XAP35502OS | 35-50 | 1200 | 900 | 10.000 daN | 6 | 2,0mm | 19 | 18x32 | 1,40 | |
| XAP50802OS | XAP50802OS | 50-80 | 1300 | 1000 | 12.000 daN | 8 | 2,0 mm | 19 | 21x38 | 1,90 | |
| XAP801052OS | XAP801052OS | 80-105 | 1500 | 1200 | 15.000 daN | 10 | 2,0 mm | 19 | 21x38 | 2,70 |
Examples:
