JZ-KF1050RDEAR

Catalog > Cable laying accessories > Menhole rollers > JZ-KF1050RDEAR

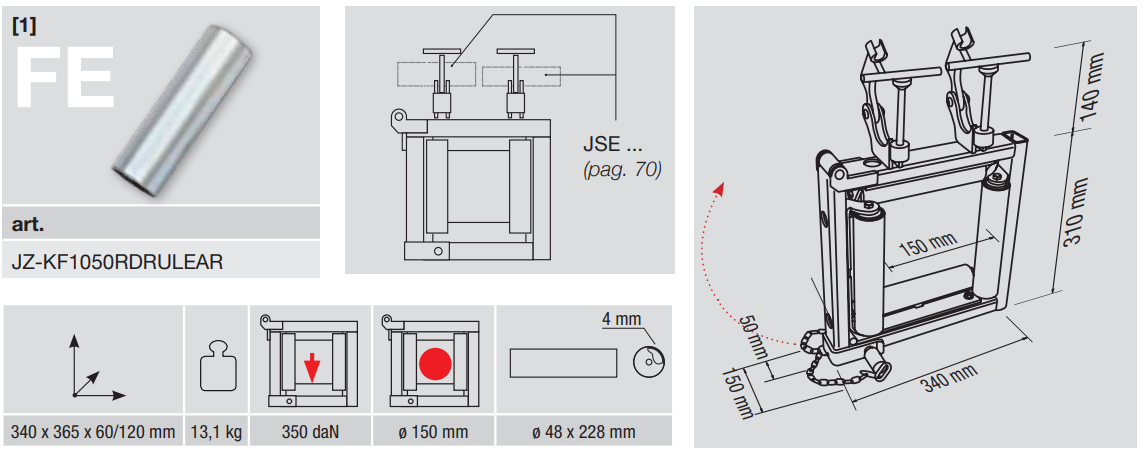

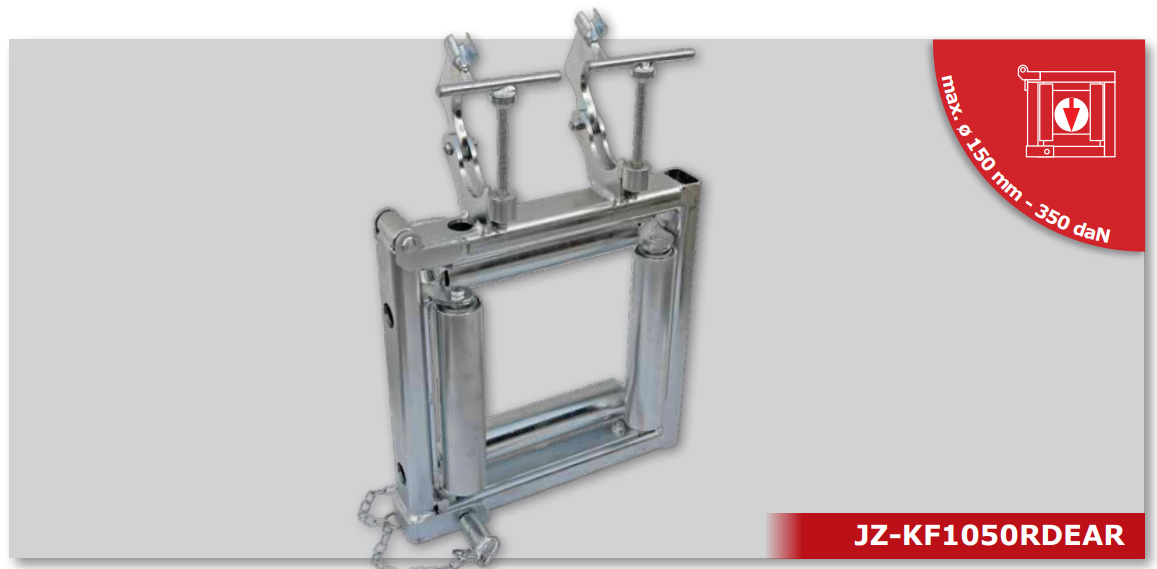

Cable guiding frame with rollers, suitable for the installations of cables in cable-conduits, up to ø 150 mm max. Composed by:
• n. 1 galvanized steel frame with lateral opening side, upper side provided of n. 2 clamps fit for fixing to a telescopic boom
• n. 4 running roller made of galvanized steel, mounted on shielded ball bearings

Model	Order No.	Wishlist
JZ-KF1050RDEAR	JZ-KF1050RDEAR

Product sheet

Accessories:

[1] Spare roller comes complete of screwed shaft M10, ball-bearings, nuts and bolts. Weight 2,0 kg.
