+49 911 830504JVMCP510

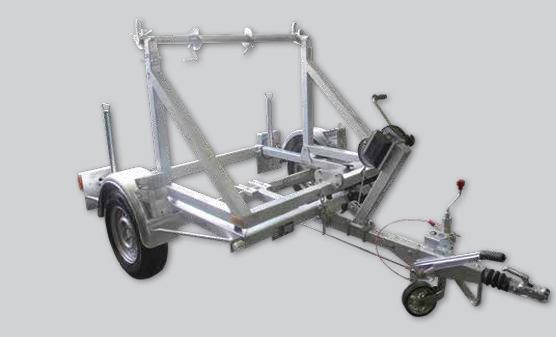

Mechanical version with loading capacity 1.000 kg.
Lifting and lowering by mechanical winch, single axle chassis with overrun brake, straight drawbar with ball coupling, TÜV approval if required, 80 km/h, lighting system 12 Volt, galvanized. Complete with standard equipment.
| Model | Order No. | Payload | Weight | Gross weight | Max. drum Ø | Clear loading width | Length | Height | Width | Drawbar | Tires | Wishlist |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JVMCP510 | JVMCP510 | 1.000 kg | 350 kg | 1.350 kg | 1.800 mm | 1.300 mm | 3.000 mm | 1.720 - 2.000 mm | 2.010 mm | Gerade/ straight | 185 R 14 C |
