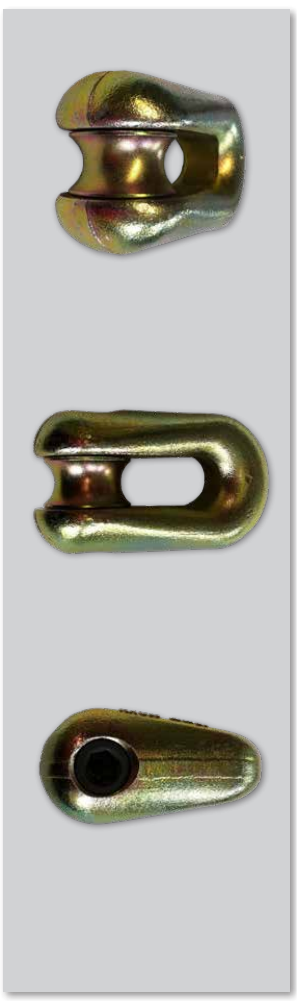

+49 911 830504Fixed rope joint
Fixed joint suitable for joining both steel pulling ropes and synthetic pilot ropes,
made of galvanized high tensile steel, with a design fit for easy and safe passage through
the bullwheels grooves of winches, screwed pin closing device provided of concave
spacer to facilitate the loop of rope position.

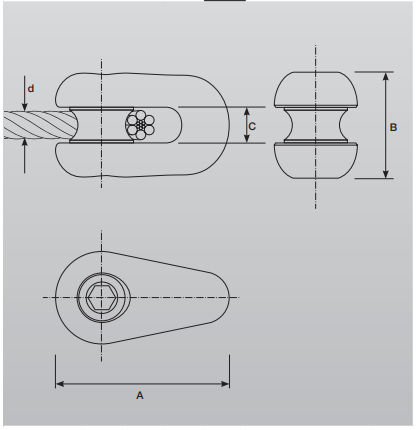

| Model | Order No. | A mm | B mm | C mm | d mm | W.L.L. (daN) | Weight (kg) | Wishlist |
|---|---|---|---|---|---|---|---|---|
| JZ-SVD10 | JZ-SVD10 | 60 | 28 | 11 | 10 | 7.000 daN | 0,14 | |
| JZ-SVD13 | JZ-SVD13 | 72 | 41 | 14 | 13 | 11.000 daN | 0,35 | |
| JZ-SVD16 | JZ-SVD16 | 90 | 49 | 19 | 16 | 16.000 daN | 0,55 | |
| JZ-SVD18 | JZ-SVD18 | 100 | 55 | 19 | 18 | 22.000 daN | 0,75 | |
| JZ-SVD24 | JZ-SVD24 | 120 | 60 | 26 | 24 | 36.000 daN | 1,05 | |
| JZ-SVD28 | JZ-SVD28 | 175 | 77 | 30 | 30 | 75.000 daN | 3,00 | |
| JZ-SVD32 | JZ-SVD32 | 184 | 77 | 34 | 32 | 90.000 daN | 3,25 |
Examples:
