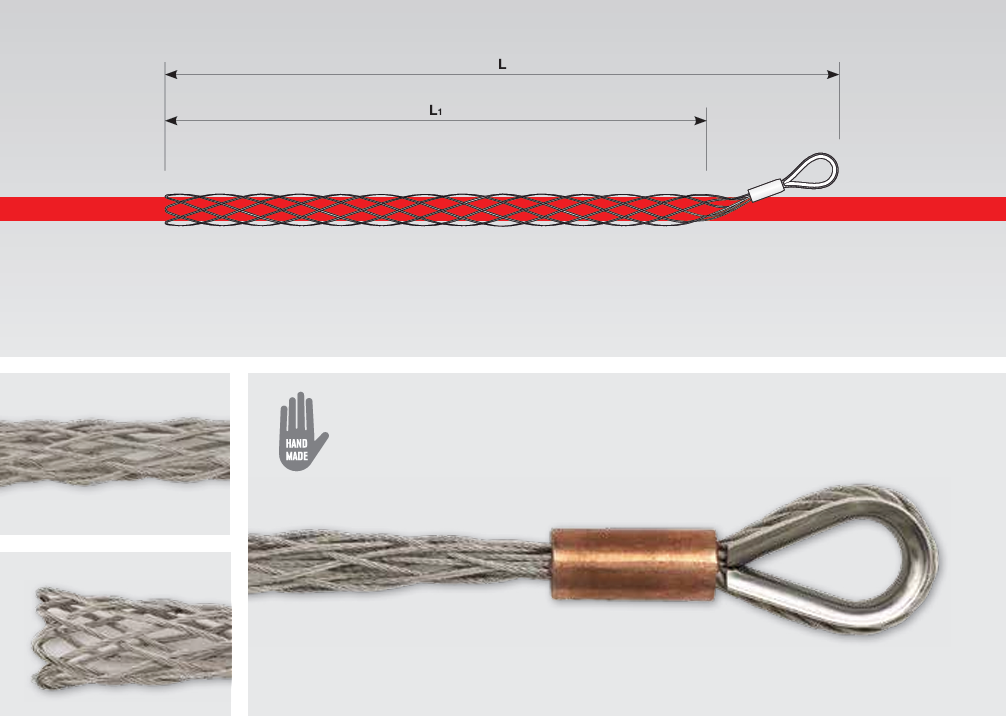

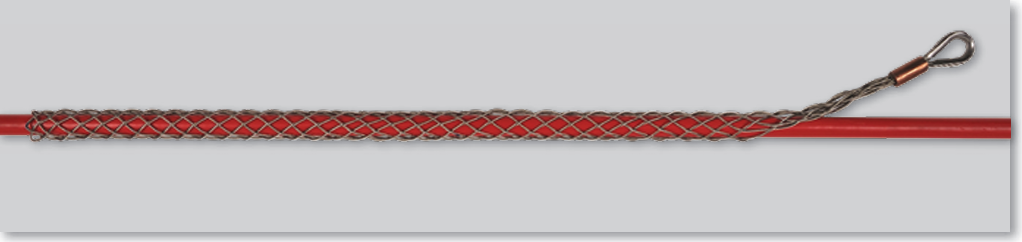

+49 911 830504Cable suspension grip with single eye and thimble made of stainless steel AISI-316, with copper sleeve
| Model | Order No. | Diameter (mm) | Length L (mm) | Length L1 (mm) | Pulling force (daN) | Number of braids | Wire diameter (mm) | Number of strands | Connection (mm) | Weight (kg) | Wishlist |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JZ-KM6100IX | JZ-KM6100IX | 10-15 | 800 | 600 | 1.100 | 5 | 1,50 | 7 | 9x14 | 0,16 | |
| JZ-KM6150IX | JZ-KM6150IX | 16-20 | 800 | 600 | 1.100 | 5 | 1,50 | 7 | 9x14 | 0,18 | |
| JZ-KM6200IX | JZ-KM6200IX | 21-27 | 800 | 600 | 1.500 | 7 | 1,50 | 7 | 12x18 | 0,21 | |
| JZ-KM6300IX | JZ-KM6300IX | 28-35 | 800 | 600 | 1.500 | 7 | 1,50 | 7 | 12x18 | 0,23 | |
| JZ-KM6400IX | JZ-KM6400IX | 36-45 | 800 | 600 | 1.800 | 8 | 1,50 | 7 | 16x23 | 0,25 | |
| JZ-KM6500IX | JZ-KM6500IX | 46-55 | 800 | 600 | 3.800 | 8 | 2,00 | 7 | 19x27 | 0,44 | |
| JZ-KM6600IX | JZ-KM6600IX | 56-65 | 800 | 600 | 3.800 | 8 | 2,00 | 7 | 19x27 | 0,49 |
Examples:
