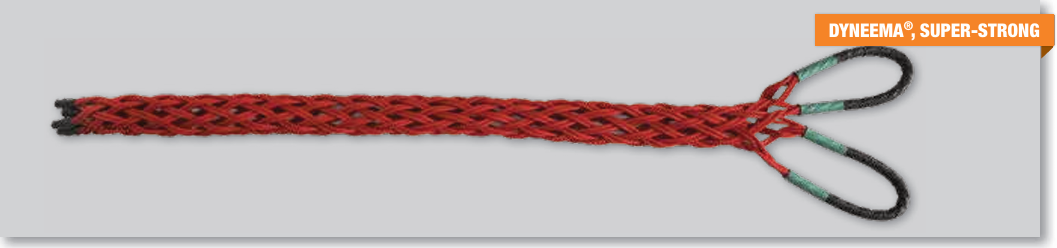

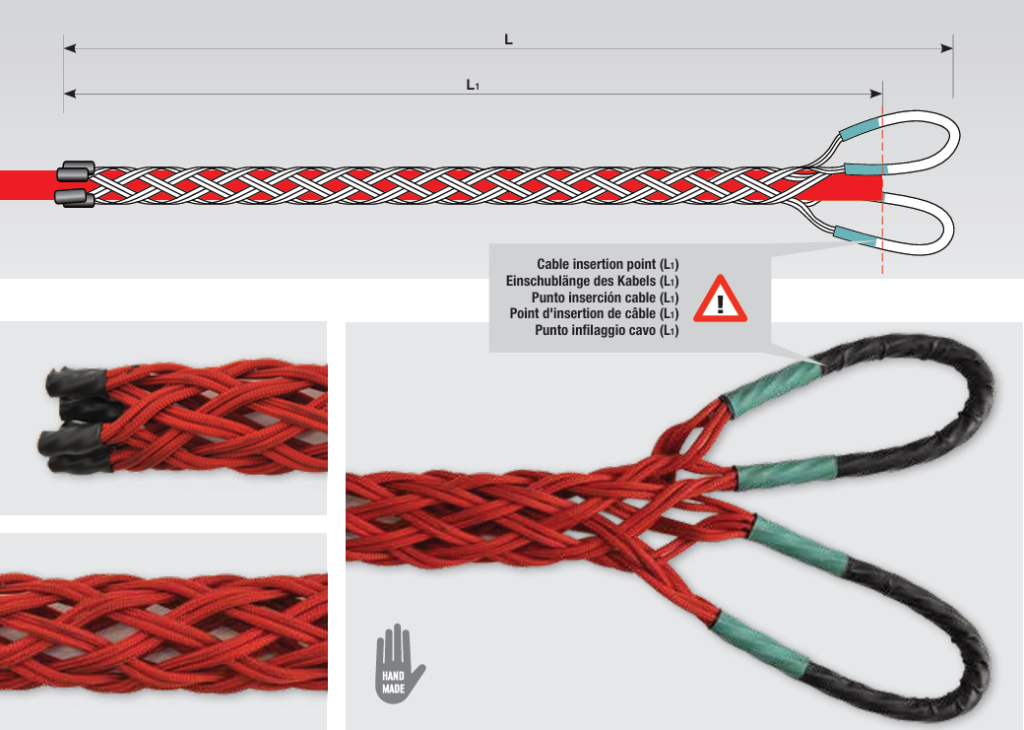

Cable pulling grip with two eyes, construction by Dyneema® wires

Model	Order No.	Diameter (mm)	Length L (mm)	Length L1 (mm)	Pulling force (daN)	Number of braids	Wire diameter (mm)	Connection (mm)	Weight (kg)
XDY5065	XDY5065	50-65	1850	1600	15.000	5	4,0	12x250	0,80
XDY6580	XDY6580	65-80	2000	1700	25.000	6	4,0	16x250	1,50
XDY80100	XDY80100	80-100	2100	1800	25.000	6	4,0	16x250	1,60
XDY100120	XDY100120	100-120	2400	2000	35.000	8	4,0	20x300	2,30
XDY120140	XDY120140	120-140	3000	2500	45.000	8	4,0	26x350	3,50
XDY140170	XDY140170	140-170	3800	3300	50.000	9	4,0	30x350	5,50
XDY170210	XDY170210	170-210	4600	4000	70.000	12	4,0	32x400	7,30
XDY210240	XDY210240	210-240	5200	4500	85.000	12	4,0	38x500	10,50
