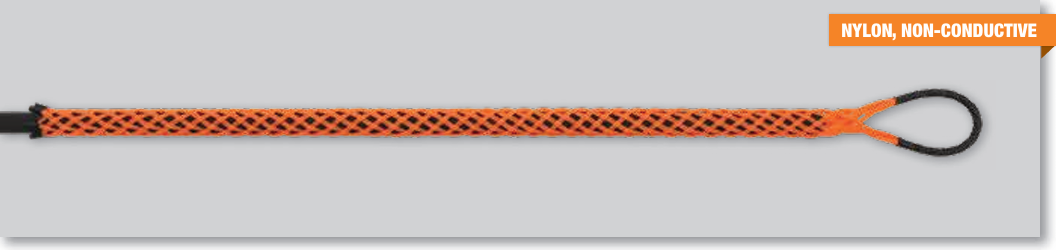

Cable pulling grip with single eye, construction by non-conductive nylon wires

Catalog > Cable pulling grips & Lifting products > Cable pulling grips > Special grips > Cable pulling grip with single eye, construction by non-conductive nylon wires

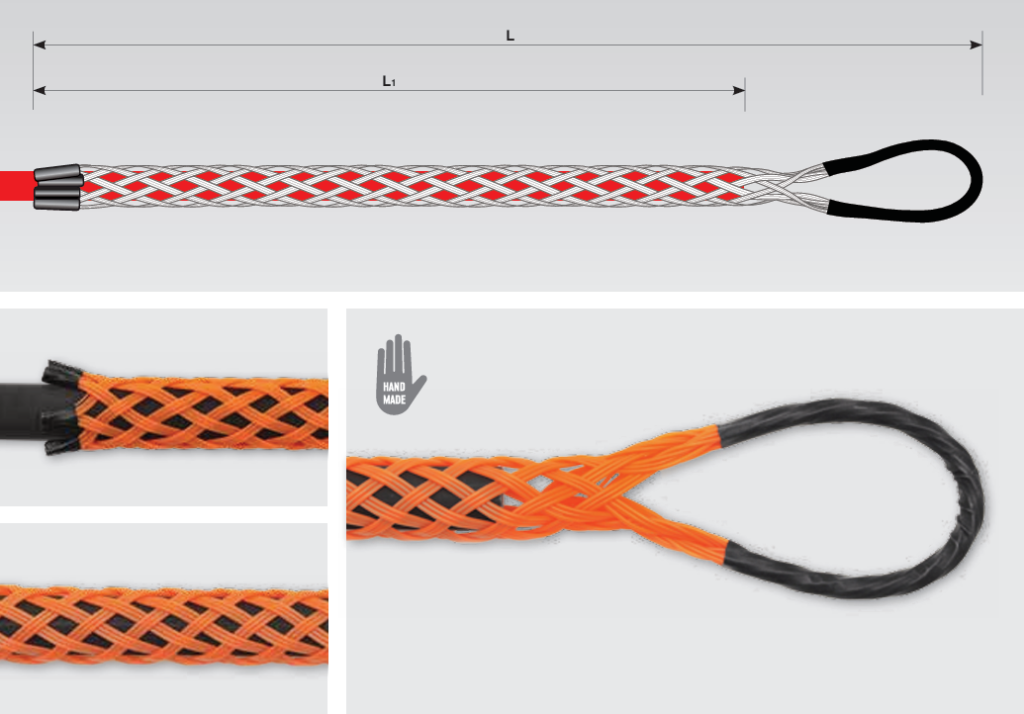

Model	Order No.	Diameter (mm)	Length L (mm)	Length L1 (mm)	Pulling force (daN)	Number of braids	Wire diameter (mm)	Connection (mm)	Weight (kg)
JM1520NN	JM1520NN	15-20	850	700	1.200	5	2,0	8x150	0,25
JM2030NN	JM2030NN	20-30	850	700	1.800	5	2,0	9x150	0,28
JM3040NN	JM3040NN	30-40	950	800	2.200	6	2,0	10x150	0,30
JM4050NN	JM4050NN	40-50	950	800	2.200	6	2,0	10x150	0,30
JM5060NN	JM5060NN	50-60	950	800	2.200	6	2,0	10x150	0,30
JM6070NN	JM6070NN	60-70	1000	850	2.500	7	2,0	11x200	0,38
JM7080NN	JM7080NN	70-80	1000	850	3.000	8	2,0	12x200	0,40
JM80100NN	JM80100NN	80-100	1050	900	3.000	8	2,0	12x200	0,43
