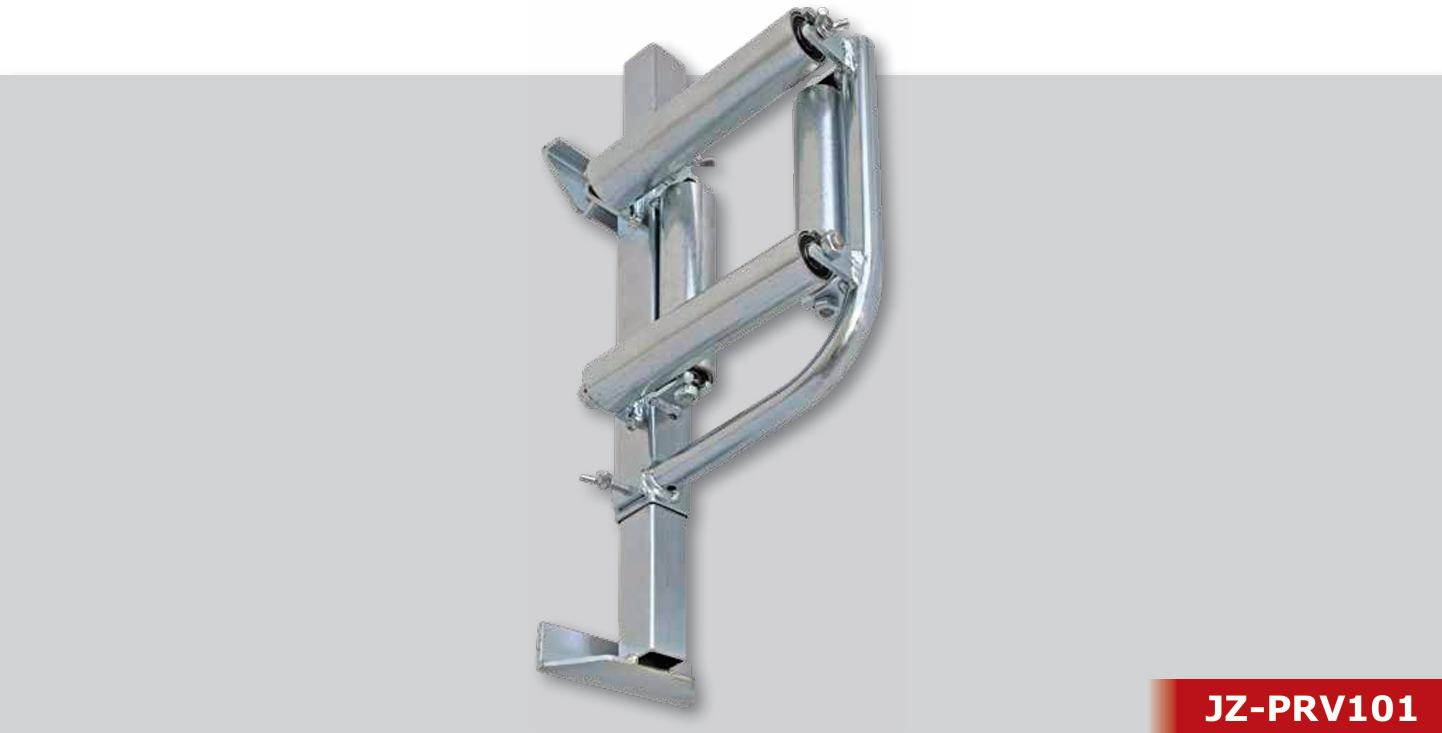

Cable guiding devices JZ-PRV101

Catalog > Cable laying accessories > Menhole rollers > Cable guiding devices JZ-PRV101

Cable laying roller fit for installations of cables up to ø 90 mm on straightway or bending positioning of cable-trays.
Composed by:
• galvanized steel frame, provided two locking devices, one fixed and one adjustable,
• n. 4 running roller made of galvanized steel, mounted on shielded ball bearings.

Model	Order No.	Wishlist
JZ-PRV101	JZ-PRV101

Product sheet

Accessories:

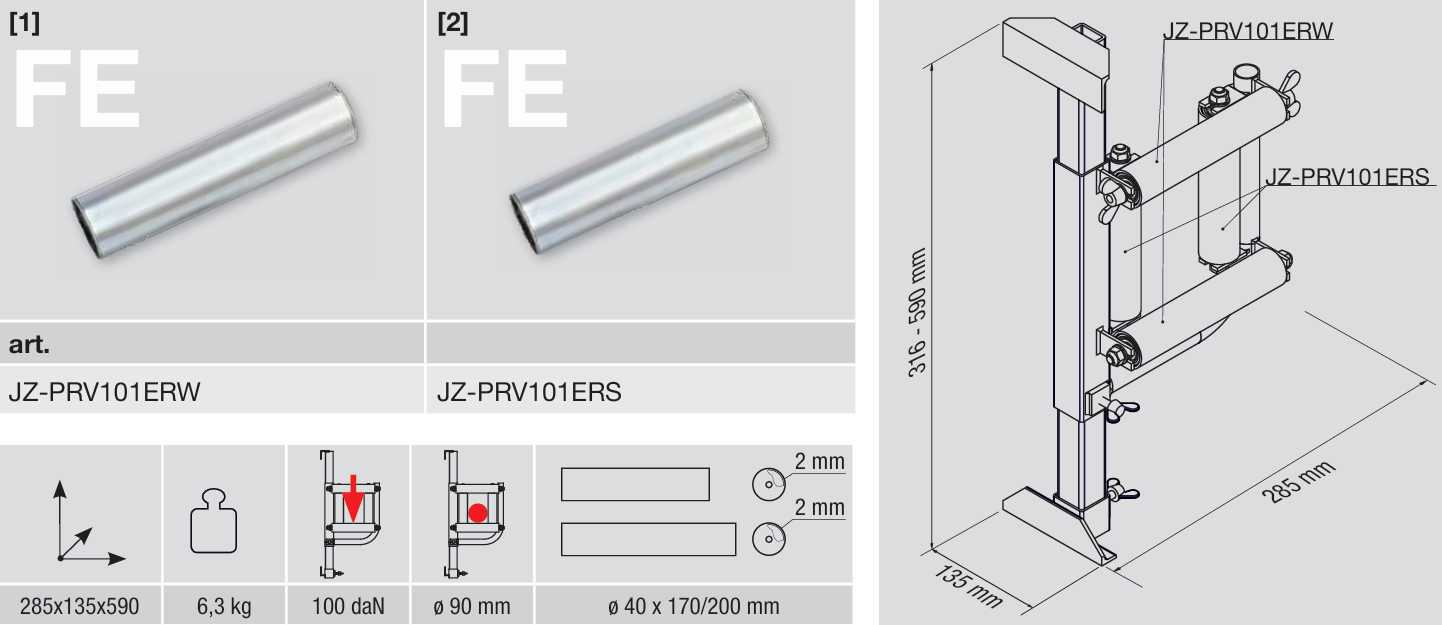

[1], [2] Spare roller comes complete of screwed shaft M10, ball-bearings, nuts and bolts.
